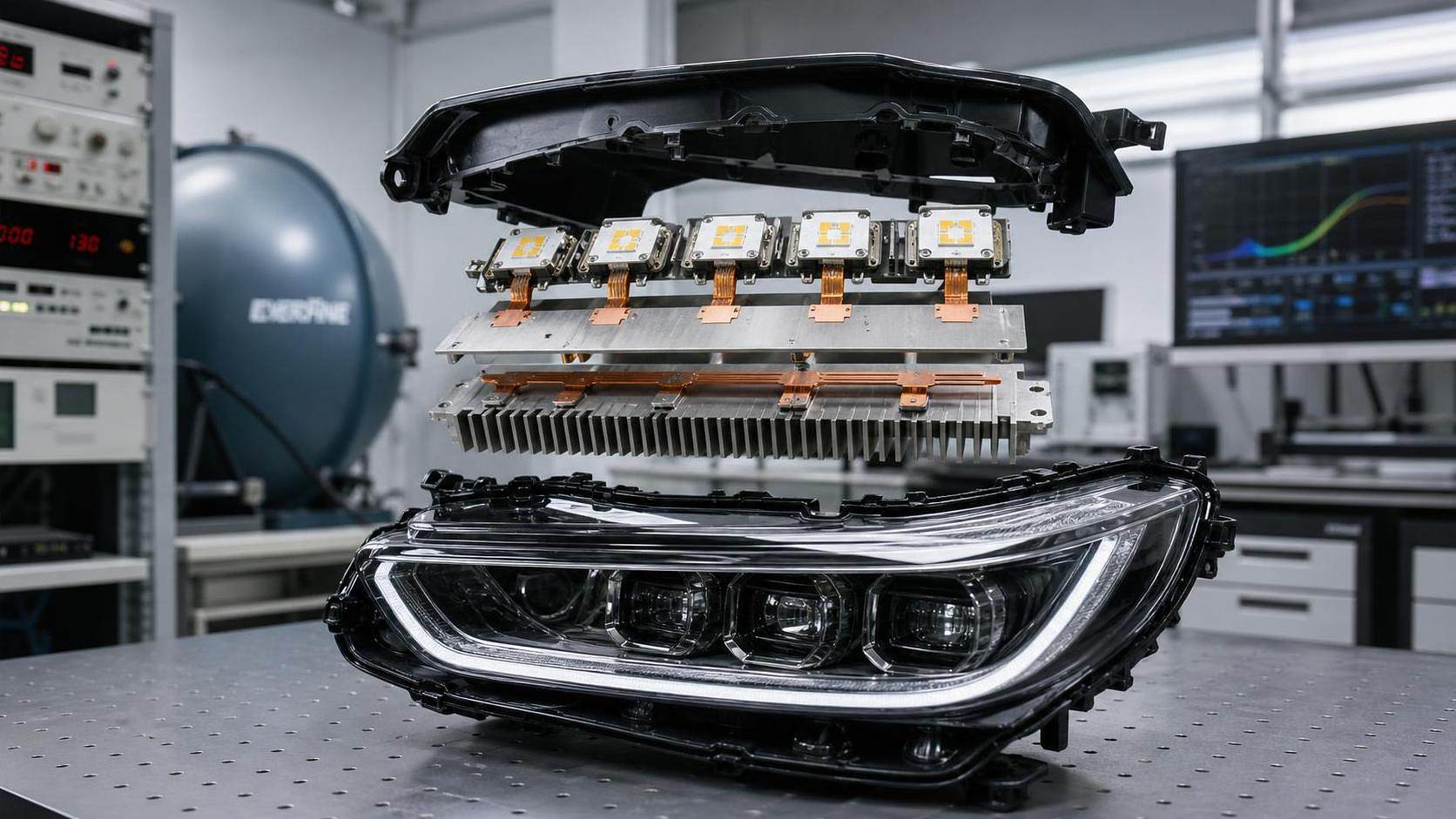

How to Improve Headlight Thermal Management Reliability in High-Power LED Systems

Start with the heat path, not the LED chip spec

When technical teams review headlight thermal management reliability, they often begin with lumen output, drive current, or the advertised junction temperature rating of the LED package. That is usually the wrong entry point. In a high-power headlamp, reliability is decided by the full thermal path: LED junction, package, substrate, thermal interface material, heat spreader, heat sink, housing, and the air or liquid environment around it. A strong LED package cannot compensate for a weak path downstream.

If you are evaluating a design, ask one practical question early: where does the heat actually go under sustained high-beam, daytime running, and adaptive lighting load? If the answer depends on assumptions instead of measured paths and boundary conditions, the reliability discussion is still immature.

What to check before you trust the thermal model

CFD and thermal simulation are useful, but in headlamp programs they are often treated as proof when they are really just a screening tool. A model is only as reliable as its inputs. For headlight thermal management reliability, these are the items worth checking first:

• Whether LED power dissipation is based on real electrical operating points rather than nominal catalog values.
• Whether ambient assumptions reflect engine bay soak, low-speed traffic, hot climate parking restart, and cold-weather condensation risk.
• Whether the model includes contamination effects such as dust loading on fins or reduced vent performance over time.
• Whether optical elements, bezels, and decorative trims block airflow or radiative exchange in ways the model simplified away.
• Whether the worst-case mode is actually simulated. In matrix systems, that may be a specific activation pattern, not full uniform output.

A common mistake is reviewing a clean bench simulation while the real lamp is installed in a tightly packaged front-end module with limited breathing room. The gap between those two conditions is where many late-stage surprises come from.

Check junction temperature margin under realistic duty cycles

A headlamp rarely runs at one fixed state. High beam, low beam, cornering light, pixel functions, DRL, welcome animation, and thermal derating logic all create different heat profiles. Evaluators should look beyond peak temperature and ask how often the system cycles near its limit.

What matters in practice is temperature margin during the duty cycle that the vehicle will actually see. Repeated operation close to thermal limits accelerates lumen depreciation, color shift, solder fatigue, driver stress, and polymer aging around the optical chamber. A design that passes a short steady-state test can still age badly if it spends too much time ramping, soaking, and cooling.

Ask for test coverage that separates at least three conditions: cold start, stabilized operation, and heat soak restart. If only stabilized temperature is shown, the reliability picture is incomplete.

Do not treat the thermal interface as a minor detail

In many LED headlamp assemblies, the thermal interface material is where a decent design becomes unreliable. Grease pump-out, pad compression loss, voiding, thickness variation, and assembly contamination all increase thermal resistance, sometimes gradually enough that the issue hides until durability testing or field exposure.

This is one of the first places to look when prototype temperatures vary too much unit to unit. The checklist is straightforward:

• Flatness of mating surfaces
• Torque control during assembly
• Compression set behavior over thermal cycling
• Compatibility with housing materials and sealing environment
• Evidence of rework sensitivity

If the thermal stack only works when assembly is near perfect, it is not robust enough for production reality.

Heat sink design needs production realism, not lab elegance

A heat sink can look efficient on paper and still fail in a vehicle package. Thin fins may perform well in ideal airflow but clog more easily or lose advantage when orientation changes. Dense fin spacing can hurt natural convection. Sharp local gradients near the LED board can also create mechanical stress between metal and polymer interfaces.

For technical evaluation, it helps to compare options with a manufacturing lens:

The best heat sink is not the one with the most dramatic shape. It is the one that keeps thermal resistance stable after assembly variation, vibration, dust, and repeated thermal cycling.

Airflow strategy has to match the vehicle installation, not just the lamp enclosure

This is especially important in EV and NEV platforms, where front-end packaging, aero shutters, sealed compartments, and styling constraints can leave less passive cooling than teams expect. A lamp that is thermally comfortable as a standalone unit may run much hotter once surrounded by adjacent modules and low-ventilation trim geometry.

For passive systems, check the orientation sensitivity. For active systems with fans, check more than initial cooling capacity. Fan reliability, acoustic behavior, ingress protection, blocked-flow detection, and fail-safe operation matter just as much. A fan-based solution without a credible degraded-mode strategy is a reliability risk, not an upgrade.

Review materials around the hot zone, not only the thermal hardware

Headlamp thermal failures are often reported as optical haze, lens deformation, seal loss, color inconsistency, or electronics drift. The root cause still traces back to heat. That is why material review has to extend beyond the LED board and sink.

Pay attention to polymers near the source, reflectors, adhesives, vent membranes, wire insulation, and connector bodies. The key question is not whether each material is generally automotive grade. It is whether it remains stable at the local temperature it will actually see, including transient peaks and radiant exposure. Local hot spots matter more than bulk chamber average.

One recurring error is approving materials by catalog temperature class without mapping their exact location and view factor relative to the LED module. In compact optical chambers, that shortcut is expensive.

The driver and control logic are part of thermal reliability

Thermal management is not just mechanical. LED driver efficiency, current regulation behavior, sensor placement, and derating strategy decide whether a headlamp remains stable or chases its own limits. A poor control scheme can create unnecessary thermal cycling even when the hardware is capable.

When reviewing electronics and controls, focus on these points:

• Temperature sensor location: Is it close enough to represent the critical thermal node?
• Derating logic: Does output reduction begin early enough to protect life, or only after the system is already near stress conditions?
• Recovery behavior: Does the lamp oscillate between bright and dim states under marginal cooling?
• Fault handling: If cooling performance drops, is there a predictable fallback mode?

In adaptive systems, this becomes even more important because thermal load is linked to software-controlled light distribution, not just fixed hardware output.

Test for the failure modes that actually show up in service

Bench thermal testing is necessary, but it does not replace durability logic. The service failures that matter tend to come from interaction: vibration plus heat, humidity plus temperature cycling, dust plus reduced airflow, or assembly shift plus localized stress. For that reason, reliability evaluation should connect thermal data with environmental and mechanical stress screens.

If your target market includes different regulatory regimes such as ECE- or DOT-governed applications, the thermal review should also account for the optical performance stability needed to maintain compliant beam behavior over time. Thermal drift that affects aiming, output uniformity, or color consistency may become a compliance problem before it becomes a visible hardware failure.

A practical evaluation order for technical teams

If you need a working sequence, use this one:

1. Map the complete heat path and identify the most temperature-sensitive nodes.
2. Compare simulation assumptions with actual vehicle packaging and operating modes.
3. Review thermal interface robustness and assembly sensitivity.
4. Check airflow strategy under restricted, dirty, and degraded conditions.
5. Verify nearby material durability at local, not average, temperatures.
6. Inspect driver efficiency, sensing, and derating logic.
7. Link thermal findings to optical stability, durability testing, and compliance risk.

That order usually exposes the weak point faster than starting from component brochures or headline performance claims.

Where the real decision usually lands

Improving thermal reliability in high-power LED headlamps is rarely about one dramatic fix. More often, it comes from removing several avoidable losses: a slightly better interface, a less optimistic airflow assumption, smarter derating, more realistic duty-cycle testing, and tighter control of local hot spots around optics and plastics.

For technical evaluators, the useful discipline is simple: do not judge the lamp by peak output alone. Judge it by how predictably it moves heat, how gracefully it handles degraded conditions, and how little its optical and electronic behavior drifts after the thermal system stops being ideal. That is the standard that separates a lamp that looks good in review from one that stays reliable in the field.
