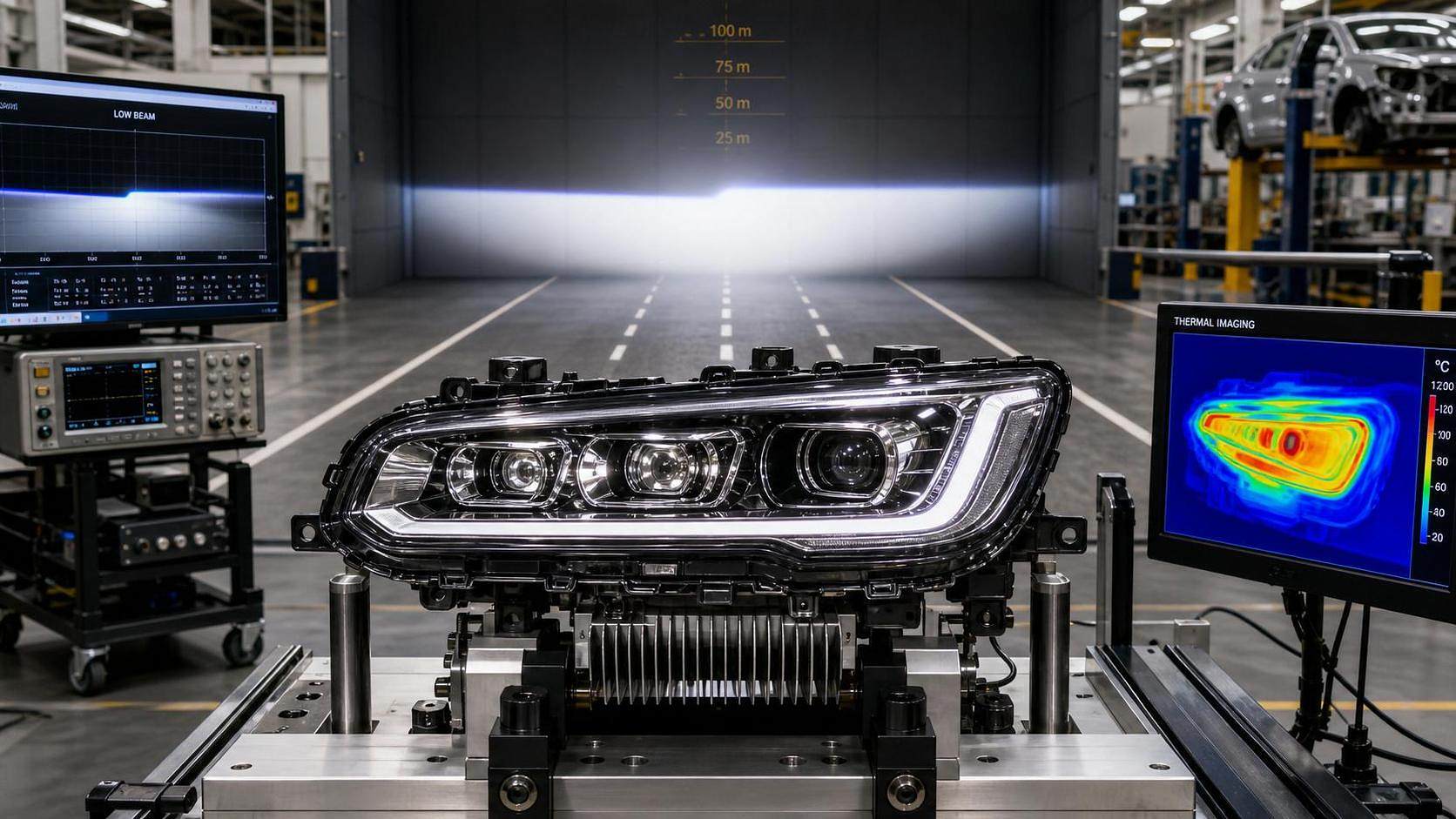

How to Evaluate LED Headlight Assemblies for Passenger Cars: Beam, Fit, and Heat

How to Evaluate LED Headlight Assemblies for Passenger Cars: Beam, Fit, and Heat

Evaluating LED headlight assemblies passenger cars requires more than comparing brightness figures.

For technical decision-making, three factors matter most: beam quality, installation fit, and heat control.

If one of them fails, the assembly may still look impressive on paper, yet underperform on the vehicle.

This is especially true in passenger cars, where packaging space, regulatory limits, and daily duty cycles are tightly linked.

A solid review process should therefore connect optical output, mechanical integration, and thermal stability in one framework.

From a sourcing view, that approach reduces warranty risk, rework, and field complaints after launch.

Start with the Beam Pattern, Not the Lumen Claim

The first filter for LED headlight assemblies passenger cars should be beam performance under real test conditions.

Raw lumen output alone does not tell you how effectively light reaches the road.

What matters is usable illumination, cutoff discipline, foreground balance, and side spread.

A high-output unit can still create glare, dark zones, or weak long-range visibility.

For low beam, assess cutoff sharpness and uniformity across the full pattern.

For high beam, check center intensity, reach, and how cleanly the beam transitions from low beam mode.

If the assembly supports matrix or adaptive functions, masking speed and segment precision become equally important.

In practical evaluation, review these beam items first:

• Cutoff clarity and stability after vibration and thermal cycling.
• Hot spot placement relative to legal photometric points.
• Uniformity across near-field and mid-field zones.
• Glare control for oncoming traffic.
• Color consistency across modules and left-right assemblies.
• Performance drift after long-duration operation.

Compliance should also be checked early, not after design freeze.

ECE and DOT standards set different requirements for beam shape, test points, and marking.

That means LED headlight assemblies passenger cars must be matched to the target market from the start.

Check Optical Architecture Behind the Output

Once the beam looks acceptable, the next step is understanding how that beam is created.

Projector, reflector, and hybrid designs behave differently in cost, serviceability, and tolerance sensitivity.

Projector systems often deliver stronger cutoff control.

Reflector systems may offer simpler packaging and lower cost, but can be more sensitive to chip placement.

Also look at the LED source itself.

Chip quality, binning consistency, phosphor stability, and driver design all influence long-term beam repeatability.

This matters when multiple production lots must maintain the same visual and regulatory performance.

For LED headlight assemblies passenger cars, stable optical architecture often matters more than peak specification claims.

Fit Evaluation Should Cover More Than Mounting Points

Mechanical fit is where many promising assemblies begin to lose value.

A unit may match nominal dimensions, yet still create issues during vehicle integration.

The review should include mounting geometry, sealing interfaces, aiming adjustment access, connector orientation, and surrounding clearances.

Passenger cars now have tighter front-end packaging because of aero targets, sensors, and styling constraints.

That makes tolerance stack-up more critical than before.

A useful fit assessment should confirm:

• Bracket strength under vibration and curb impact loads.
• Gap and flush performance against hood, fender, and bumper surfaces.
• Access to serviceable components without removing adjacent systems.
• Compatibility with body control modules and connector standards.
• Adequate clearance from radar, camera, and air duct components.
• Seal integrity against dust, water, and pressure variation.

Small packaging mismatches usually become large production issues.

They can slow assembly lines, affect aiming accuracy, and increase cosmetic rejection rates.

When reviewing LED headlight assemblies passenger cars, insist on vehicle-level fit verification, not only CAD approval.

Heat Management Is a Reliability Test in Disguise

Thermal control is often treated as a background issue.

In reality, it is one of the main predictors of lifetime performance.

LEDs are efficient, but they still generate concentrated heat at the junction.

If that heat is not removed effectively, output drops, color shifts, and material aging accelerates.

This is why LED headlight assemblies passenger cars should be evaluated under realistic thermal loads, not only room-temperature conditions.

Review the full thermal path: chip, substrate, heat sink, housing, vents, and surrounding vehicle airflow.

Active cooling can improve performance, but it adds noise, power demand, and failure points.

Key thermal questions include:

• What is the junction temperature at steady-state operation?
• How much luminous flux is lost at elevated ambient temperature?
• Does the housing trap heat near electronics or seals?
• How does the system perform after dust loading and aging?
• Are vent membranes effective without introducing moisture risk?

In actual programs, thermal weakness often shows up as a field issue months after SOP.

That is why a strong thermal review protects both product quality and commercial credibility.

Use a Practical Comparison Matrix

When several options look similar, a weighted matrix makes decisions more defensible.

It also helps separate engineering value from marketing language.

For LED headlight assemblies passenger cars, this kind of matrix keeps evaluation focused on measurable decision criteria.

Supplier Review Matters as Much as Product Review

A technically attractive assembly still depends on supplier discipline.

Ask how beam validation is repeated across lots.

Check whether thermal simulation is backed by physical testing.

Review process control for optics cleanliness, LED binning, adhesive curing, and housing sealing.

For passenger car programs, response speed also matters.

Late design changes, market-specific regulations, and software updates can affect the final lamp configuration.

A capable supplier of LED headlight assemblies passenger cars should support those adjustments without losing consistency.

A Better Evaluation Standard for Real Vehicle Use

The best LED headlight assemblies passenger cars are not simply the brightest or most advanced-looking.

They are the ones that maintain beam accuracy, fit cleanly, and manage heat over time.

That combination supports safer night driving, smoother integration, and lower total lifecycle cost.

In current passenger car development, those are the signals that separate a promising sample from a dependable production choice.

At AEVS, this is exactly how exterior and vision technologies should be assessed.

Optical precision, packaging realism, and thermal stability should be reviewed together, not in isolation.

For the next sourcing round, build your shortlist around tested beam data, confirmed vehicle fit, and proven thermal margins.

That is the most reliable way to choose LED headlight assemblies passenger cars that perform well beyond the specification sheet.
