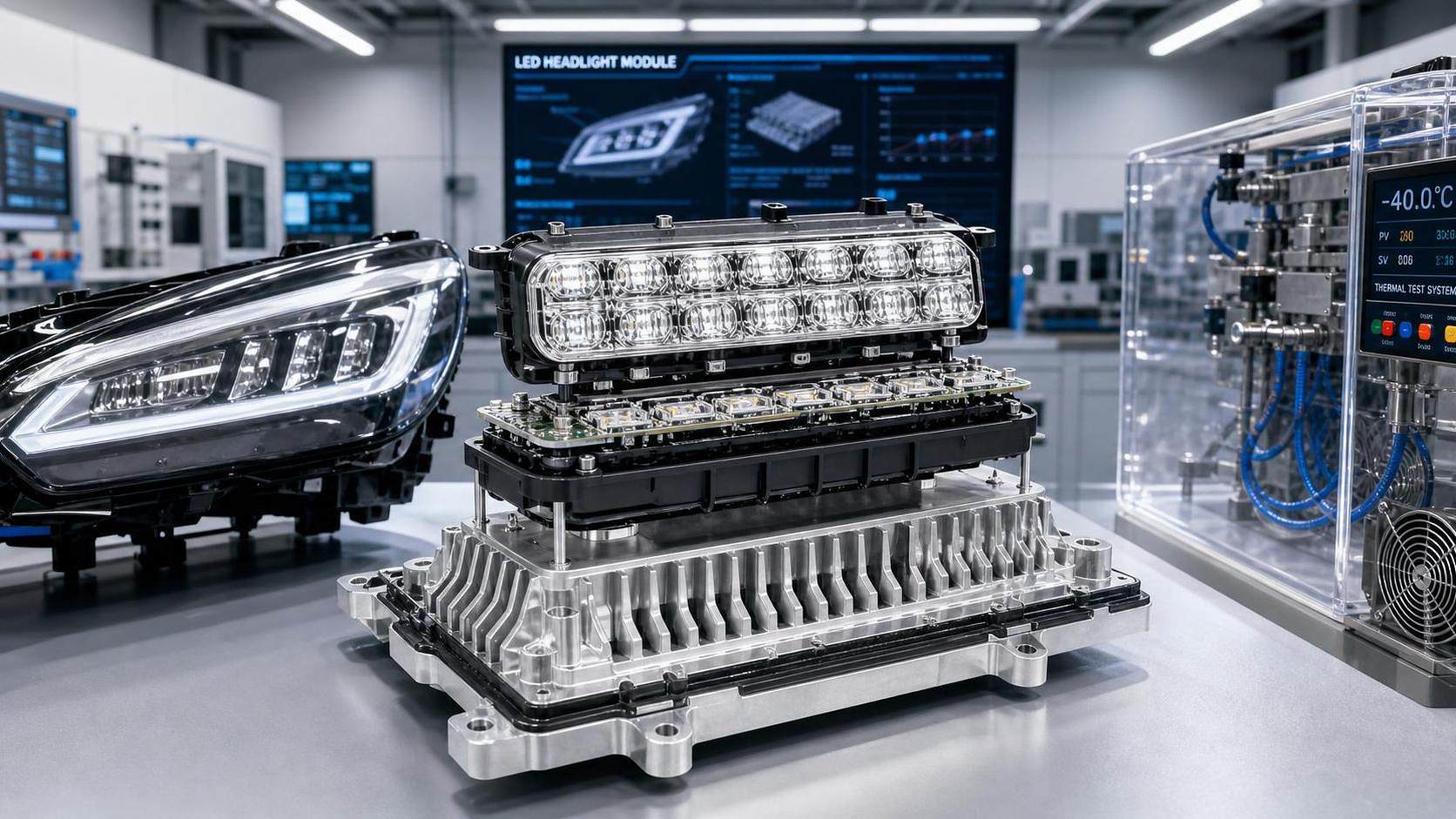

Headlight Thermal Management in Compact Design: Key Constraints, Materials, and Cooling Methods

In advanced vehicle lighting, headlight thermal management compact design has moved from a packaging detail to a core engineering issue. Compact LED and matrix systems deliver higher luminous density in smaller housings, yet the same shrinkage reduces thermal headroom. When heat is not managed well, optical output drifts, polymers age faster, solder joints fatigue, and compliance margins narrow. For platforms where styling, range efficiency, and smart perception must coexist, thermal design is now tied directly to product credibility.

Why compact headlamp thermal control matters now

The pressure comes from several directions at once. Electric vehicles favor slim front-end architecture, lower aerodynamic drag, and dense integration of sensors, DRLs, projectors, and signature lighting.

At the same time, lighting functions have expanded. A headlamp is no longer only an illumination device. It supports adaptive beam shaping, anti-glare masking, signaling, and brand identity.

That combination makes headlight thermal management compact design a cross-functional concern. It affects optics, electronics, materials, sealing, airflow, and service life, not just heat sink geometry.

Within the AEVS perspective, this fits a broader pattern seen across vehicle exteriors. Lightweight wheels, quiet tires, sensor switches, and smart headlamps all depend on tighter performance integration under harsher constraints.

What heat does inside a compact headlamp

LEDs convert more energy into useful light than halogen sources, but they still generate substantial heat at the junction. In compact packages, that heat can accumulate quickly.

The most immediate effect is luminous depreciation. As junction temperature rises, light output falls, color point can shift, and beam consistency becomes harder to maintain.

Heat also reaches nearby components. Lenses may haze, reflectors may distort, venting behavior can change, and electronic drivers may derate or fail earlier than expected.

In matrix systems, the risk is more subtle. Uneven thermal distribution between emitters can alter local brightness, which then affects adaptive beam precision and perceived road guidance quality.

The main constraints shaping headlight thermal management compact design

Thermal design rarely starts with ideal conditions. It usually starts with what cannot move.

Packaging and styling limits

Front fascia styling often dictates shallow lamp depth, narrow profiles, and complex contours. This reduces heat sink volume and restricts natural convection paths.

Optical alignment sensitivity

Thermal expansion changes distances between emitters, lenses, and reflectors. Even small shifts can influence cutoff sharpness, projection accuracy, and beam uniformity.

Environmental sealing

Headlamps must resist water, dust, salt, and pressure variation. Better sealing protects electronics, but it can also trap heat if venting and internal circulation are poorly balanced.

Electrical loading and control logic

Higher beam intensity, dynamic functions, and animation sequences create nonuniform duty cycles. Thermal peaks may occur in use cases that are not obvious in static bench tests.

Regulatory durability expectations

ECE and DOT frameworks focus on photometric and safety outcomes. Thermal weakness often appears indirectly through lumen decay, color instability, condensation behavior, or shortened lifetime.

Material choices that influence thermal paths

Materials define whether heat moves efficiently away from the LED junction or remains trapped near critical surfaces. In headlight thermal management compact design, the interfaces matter as much as the major components.

Aluminum remains dominant because it balances conductivity, manufacturability, and weight. In premium or highly loaded modules, ceramic substrates help protect thermal performance and dimensional accuracy.

Thermal interface materials deserve closer scrutiny than they often receive. A strong bulk conductivity value does not guarantee low system resistance after vibration, cycling, and long exposure.

Cooling methods used in compact assemblies

There is no universal cooling method. The right approach depends on power density, envelope size, duty cycle, and program cost target.

Passive conduction and convection

This is still the baseline. Heat travels from the LED package through the substrate, interface layer, and metal sink, then dissipates to ambient air.

For many compact headlamps, passive systems remain preferred because they reduce moving parts, simplify validation, and support long-term reliability.

Active air cooling

Small fans can increase heat rejection where lamp volume is very limited. They are useful in high-output projectors and some dense matrix configurations.

The tradeoff is straightforward. Fans add acoustic, contamination, and lifetime risks, and they demand clear fault management strategies.

Heat pipes and vapor chambers

These methods move heat away from the source faster than a simple solid path. They help when the best dissipation area is physically separated from the LED location.

They are effective, but integration complexity rises. Mechanical tolerance, orientation sensitivity, and cost must be checked early, not after styling freeze.

Control-based thermal mitigation

Cooling is not only hardware. Driver logic can reduce peak temperature through dimming maps, adaptive power allocation, and thermal derating thresholds.

This becomes especially relevant in headlight thermal management compact design for matrix systems, where selective pixel operation can preserve function while lowering local heat load.

How the issue should be evaluated in practice

A useful review goes beyond nominal wattage or heat sink size. Thermal performance should be judged as a system behavior under realistic operating states.

• Map junction temperature, board temperature, and housing hot spots under low-speed, idle, and hot-soak conditions.
• Check thermal impact on photometric stability, not only component survival.
• Review interface materials for assembly tolerance, rework sensitivity, and aging after vibration cycles.
• Assess whether venting and sealing strategy control both condensation and heat rejection.
• Compare CFD results with physical tests, especially near corners, blocked passages, and mixed-material joints.

In many programs, the weak point is not the main heat sink. It is the small discontinuity between parts, where contact pressure, flatness, or material degradation increases resistance.

Business value beyond thermal survival

A robust headlight thermal management compact design strategy protects more than reliability targets. It supports cleaner signature lighting, steadier matrix performance, and lower warranty exposure.

It also affects platform economics. Better thermal architecture can reduce overdesign, avoid oversized housings, and make it easier to share modules across trims or regions.

This is one reason AEVS tracks thermal models alongside optical algorithms and exterior lightweighting trends. In smart mobility programs, thermal efficiency increasingly connects engineering detail with commercial outcome.

Signals worth tracking next

The next wave of change will likely come from denser LED arrays, slimmer lamp signatures, smarter power control, and wider use of simulation-led design loops.

Material volatility also matters. Changes in aluminum pricing, thermal compound sourcing, and electronics packaging can alter the most viable architecture for a compact lamp program.

A practical next step is to build a comparison framework around thermal path continuity, optical stability, service life, and packaging flexibility. That approach makes headlight thermal management compact design easier to judge before costly validation stages begin.

When those criteria are reviewed together, cooling method selection becomes clearer, material tradeoffs become more defensible, and compact headlamp decisions align better with both exterior design goals and long-term vehicle performance.
