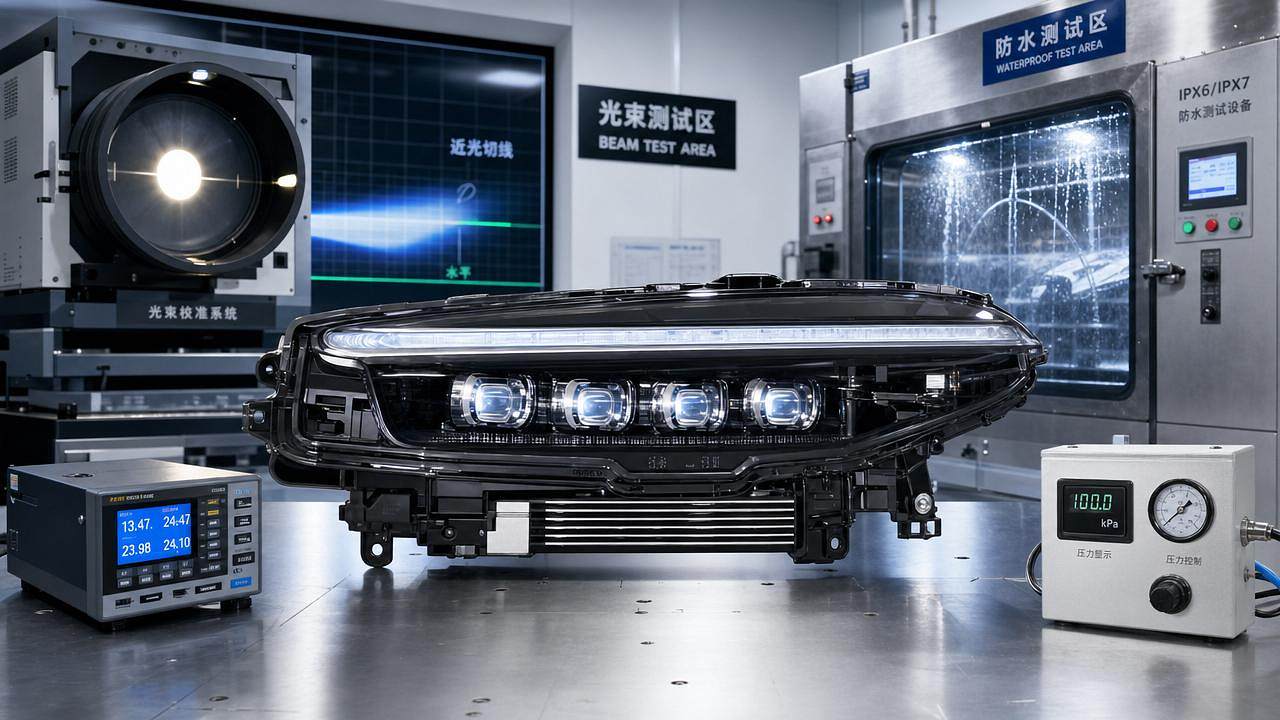

LED Headlight Assemblies Buying Guide: Beam Pattern, Thermal Design, and IP Ratings

LED Headlight Assemblies Buying Guide: Beam Pattern, Thermal Design, and IP Ratings

For procurement teams evaluating LED headlight assemblies, choosing the right solution means balancing beam pattern precision, thermal stability, and reliable IP protection.

This guide explains the technical factors that most directly affect safety, compliance, durability, and total ownership cost.

In today’s market, LED headlight assemblies are no longer simple replacement parts.

They influence brand appearance, night visibility, energy efficiency, and long-term service performance.

That also means sourcing decisions now require a more technical review than many buyers expect.

From recent market changes, the clearest signal is simple.

Higher-output systems, tighter regulations, and smarter vehicle platforms are raising the evaluation standard for LED headlight assemblies.

Why LED Headlight Assemblies Need a Structured Buying Review

A low unit price can look attractive at first.

In actual sourcing work, the larger cost often appears later through warranty claims, compliance failures, or unstable field performance.

Well-selected LED headlight assemblies support consistent beam output, cleaner styling integration, and fewer quality disputes across regions.

Poorly matched products can create glare issues, thermal fade, water ingress, and supplier management pressure.

A practical evaluation should focus on three linked areas:

• Beam pattern accuracy and optical consistency
• Thermal design under real operating conditions
• IP protection for moisture, dust, and pressure changes

These three factors shape both immediate product quality and lifecycle economics.

Beam Pattern: The First Checkpoint for LED Headlight Assemblies

Beam pattern is the most visible performance indicator in LED headlight assemblies.

It directly affects forward visibility, roadside illumination, glare control, and legal compliance.

A strong beam pattern is not just about brightness.

It is about placing light exactly where the vehicle needs it, while preventing excess light in restricted zones.

What to review in optical performance

• Cutoff sharpness for low beam control
• Uniformity across the main illuminated area
• Hot spot placement and usable throw distance
• Glare suppression for opposing traffic
• Optical repeatability across production batches

In practical comparison work, ask for photometric test reports, not only sales brochures.

Look closely at test points, tolerance ranges, and whether the supplier validates both initial and aged performance.

This matters because some LED headlight assemblies perform well in early samples, then drift after thermal cycling or vibration exposure.

Questions that help separate suppliers

1. Are the optics optimized for reflector, projector, or matrix architecture?
2. How stable is the beam after heat soak testing?
3. What process controls protect lens and reflector alignment?
4. Which standards are used for beam verification, such as ECE or DOT?

A supplier that answers clearly usually has stronger engineering depth and more reliable manufacturing discipline.

Thermal Design: The Hidden Driver of Reliability

Thermal design is often underestimated when selecting LED headlight assemblies.

Yet heat management is one of the biggest reasons for performance drop, color shift, and early failure.

LEDs are efficient, but they still generate heat at the junction, driver, and surrounding housing.

If that heat is not removed well, the system loses lumen output and long-term stability.

Key thermal elements to inspect

• Heat sink material and fin design
• Passive versus active cooling strategy
• Thermal interface quality between LED and substrate
• Driver placement and thermal isolation
• Performance under high ambient temperature

In NEV applications, thermal demands can be even more complex.

Tighter packaging, aerodynamic constraints, and electronic integration reduce cooling flexibility around LED headlight assemblies.

That is why serious buyers should request thermal simulation data and real validation results together.

Simulation alone is useful, but it is not enough.

The better signal is measured performance under endurance testing, voltage variation, and repeated on-off cycles.

Common thermal risks during sourcing

• Overstated lumen values based on short-duration tests
• Fan-based cooling with uncertain field durability
• Plastic housing distortion near hot zones
• Driver failure caused by poor thermal separation

When thermal design is strong, LED headlight assemblies maintain output longer and reduce warranty exposure.

IP Ratings: More Than a Label on the Specification Sheet

IP ratings are a basic checkpoint, but they should never be treated as a simple box-tick item.

LED headlight assemblies operate in environments with water spray, road salt, dust, vibration, and sharp temperature changes.

An IP rating tells part of the story.

The full story depends on sealing design, venting strategy, material aging, and assembly process control.

What buyers should verify beyond the rating

• Seal material compatibility with heat and chemicals
• Breather membrane quality and pressure equalization ability
• Lens bonding consistency and housing weld integrity
• Condensation resistance in changing climates
• Post-test inspection standards after dust and water exposure

For LED headlight assemblies, water ingress is not the only concern.

Internal fogging can also damage appearance, reduce light quality, and trigger customer complaints even without total failure.

This is why a supplier’s condensation control method deserves close attention.

A robust design balances sealing with ventilation, instead of simply making the enclosure tighter.

Compliance, Integration, and Platform Fit

Even high-performing LED headlight assemblies can become risky if they do not match platform requirements.

Regional regulations, electrical architecture, packaging limits, and styling targets all affect final selection.

In cross-border sourcing, ECE and DOT alignment should be checked early.

Late compliance changes usually cost more than early technical clarification.

Useful platform-fit checklist

• Vehicle voltage and control interface compatibility
• Mounting points and dimensional tolerance stack-up
• CAN communication or smart control requirements
• Adaptive lighting or matrix upgrade roadmap
• Serviceability and replacement part strategy

This matters even more when LED headlight assemblies are part of a premium exterior strategy.

In that case, optical performance, styling identity, and smart sensing integration must support the same product story.

That perspective aligns closely with AEVS market observation.

Vehicle exteriors now combine aerodynamic efficiency, intelligent perception, and visual differentiation in one system-level decision.

How to Compare Suppliers of LED Headlight Assemblies

A practical supplier review should combine technical, manufacturing, and commercial evidence.

This keeps the decision balanced and reduces surprises after nomination.

Recommended evaluation points

• Photometric data quality and beam consistency records
• Thermal validation depth and endurance results
• IP test evidence and condensation control history
• PPAP, traceability, and process audit maturity
• Tooling readiness and ramp-up capability
• Warranty terms, response speed, and engineering support

It also helps to compare LED headlight assemblies using a weighted scorecard.

For example, beam performance, thermal durability, and compliance readiness may deserve higher weighting than pure piece price.

That approach gives a clearer view of total cost of ownership.

Final Decision Framework

When evaluating LED headlight assemblies, start with beam pattern because it defines usable lighting performance and compliance risk.

Then confirm thermal design, because stable heat management protects lumen retention, color stability, and driver life.

After that, verify IP ratings with real sealing evidence, condensation testing, and process consistency.

Finally, connect those findings to platform fit, supplier capability, and long-term commercial value.

The best LED headlight assemblies are not simply the brightest or the cheapest.

They are the solutions that keep optical accuracy, thermal reliability, and environmental protection in balance across the full vehicle lifecycle.

In a market moving toward smarter, more integrated lighting, that balanced evaluation is what leads to better sourcing decisions and stronger product outcomes.
