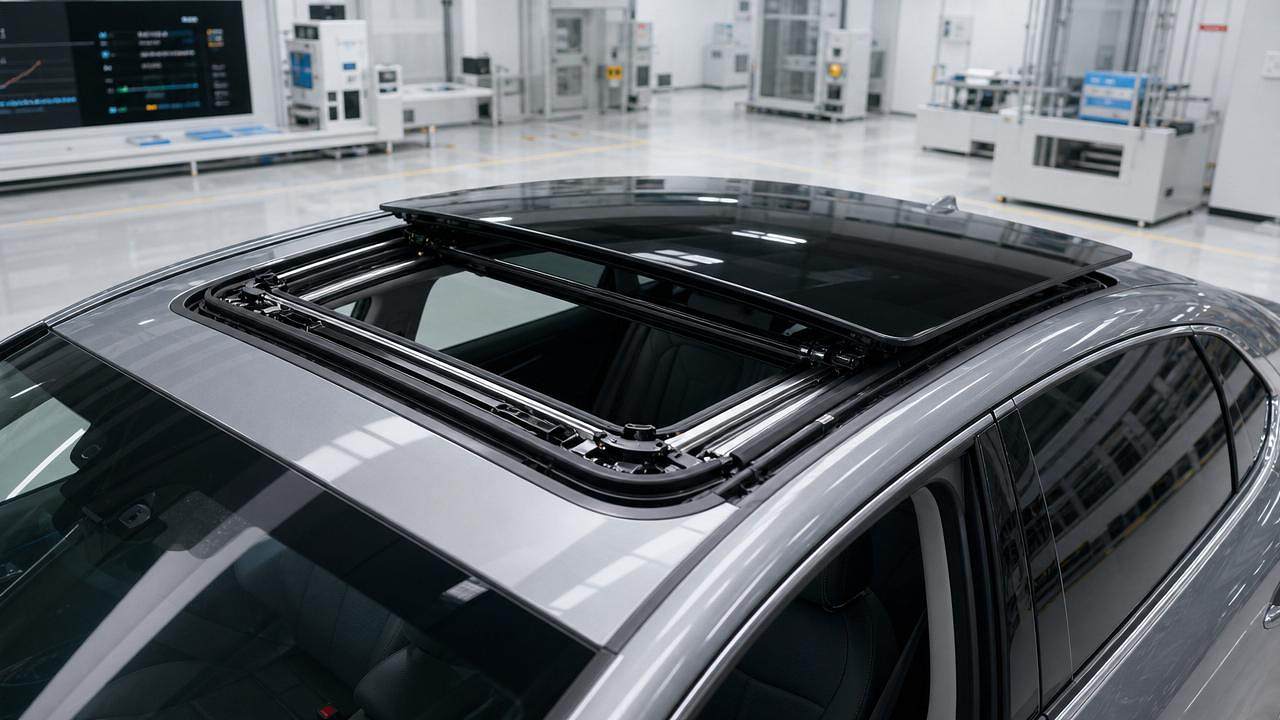

Electric Sunroof Systems Selection Guide: Motor Types, Sealing, Noise, and Failure Risks

Choosing electric sunroof systems now reaches far beyond styling. In NEV programs, the roof opening influences cabin quietness, sealing stability, aerodynamic drag, body stiffness, safety validation, and long-term warranty exposure.

That is why selection decisions should connect mechanism design, motor strategy, drainage layout, glass specification, and supplier validation logic from the start, not after styling freeze.

For AEVS, this topic sits naturally inside the wider vehicle exterior conversation. A roof system affects perceived quality just as much as wheels, tires, lighting, and sensor integration.

The practical question is simple: which electric sunroof systems deliver the right user experience without creating hidden NVH issues, water leaks, motor overload, or expensive field failures later?

Start with the architecture, not the trim concept

Before comparing suppliers, define the package boundaries. Opening size, roof curvature, headroom target, cross-car beam layout, and glass mass will immediately narrow the suitable electric sunroof systems.

If the platform is shared across ICE, hybrid, and EV derivatives, roof module commonization matters. It can reduce tooling cost, but only when stiffness, power load, and sealing conditions remain aligned.

What should be locked first

• Confirm roof aperture, glass weight, and stack height early, because these three values drive rail strength, motor torque margin, and header seal compression in real use.
• Check body stiffness around the opening before supplier nomination, since weak roof frames often create squeak, flutter, and sealing inconsistency during twist events.
• Align sunshade, antenna, curtain airbag, and wiring routes together, because packaging conflicts usually surface late and force compromises on serviceability or NVH treatment.
• Set clear performance gates for wind noise, water management, cycle life, and pinch protection, so sourcing decisions stay tied to measurable vehicle targets.

Motor choice shapes speed, feel, and failure risk

Most electric sunroof systems rely on DC brushed motors, brushless motors, or integrated smart drive modules. The right option depends on load stability, feature level, and expected lifecycle.

Brushed motors remain common because they are cost-effective and easy to integrate. Still, they are more sensitive to wear, heat buildup, and current spikes under marginal sealing or rail contamination.

Brushless solutions usually improve efficiency, speed consistency, and durability. They fit premium panoramic roofs well, especially where heavier glass and anti-pinch accuracy demand tighter control.

Motor selection points worth checking

• Choose torque with contamination and low-temperature margin included, not only nominal glass movement, because field loads rise sharply after dust, ice, and grease aging.
• Review stall current and thermal protection logic carefully, since repeated vent-open commands in hot climates can overstress undersized motors and shorten useful life.
• Prefer precise position sensing for panoramic applications, because smoother soft-stop behavior reduces perceived harshness and supports more reliable anti-pinch calibration.
• Verify emergency closing strategy during voltage drop events, especially on EV platforms where load management and sleep-wake logic may interrupt roof operation.

Sealing is never just about the rubber profile

A common mistake is treating sealing as a weatherstrip issue only. In reality, electric sunroof systems depend on a full water-management chain: glass fit, roof tolerances, drainage path, corner molding, and assembly repeatability.

Most sunroofs are designed to manage, not completely eliminate, water entry at the outer seal line. That makes drain capacity and routing just as critical as the visible seal itself.

Sealing checks that prevent future claims

• Test drain performance under tilt, acceleration, and uneven parking conditions, because overflow events often happen in real-world angles, not lab-perfect vehicle positions.
• Inspect seal compression spread across corners and center spans, since local over-compression causes drag while low-compression zones invite whistle and water migration.
• Validate hose routing against kinks and assembly variation, because a well-designed tray still fails when drain tubes pinch behind trim or body brackets.
• Review adhesive, coating, and galvanic compatibility near the opening, especially on mixed-material roofs where corrosion can undermine long-term sealing reliability.

In programs focused on lightweight exteriors, this matters even more. Aluminum roof structures, bonded reinforcements, and large glazed areas can change thermal movement and seal behavior over time.

Noise comes from more than wind

When teams discuss electric sunroof systems, they often jump directly to wind noise. That matters, but several other sources shape the customer impression first.

Motor whine, cable chatter, rail friction, shade rattle, buffeting in vent position, and roof-panel flush variation can all create complaints. EV cabins make these sounds easier to hear.

Where NVH usually gets lost

• Measure operating sound by phase, not only peak value, because start-up click, mid-stroke chatter, and end-stop impact create different quality impressions.
• Check flushness and gap variation at production tolerance limits, since small surface deviations can trigger strong wind rush at highway speed.
• Evaluate buffeting with side glass positions and HVAC settings combined, because cabin pressure behavior changes dramatically with partially open windows.
• Do not separate shade and roof testing, because many perceived rattles actually come from interaction between sliding shade guides and roof module vibration.

Typical failure modes appear earlier than expected

Warranty issues in electric sunroof systems rarely come from one dramatic defect. More often, small design margins stack up until the system becomes sensitive to climate, usage pattern, or assembly drift.

Cable wear, rail contamination, weak anti-pinch calibration, blocked drains, and seal set compression are frequent examples. None look severe at sourcing stage, yet all become expensive in the field.

Failure risks to screen out early

• Watch for rising operating force after dust and life-cycle testing, because gradual friction growth often predicts cable fatigue and motor overheating later.
• Confirm anti-pinch performance with aged seals and cold grease, since calibration that passes fresh builds may fail after environmental exposure.
• Inspect vent-position stability under body twist, because corner lift or uneven closing can lead to whistle, leaks, and perceived poor craftsmanship.
• Review service replacement complexity, since long repair times quickly amplify warranty cost even when component prices appear manageable.

Different vehicle programs need different trade-offs

On an entry NEV platform, the best answer may be a compact roof with proven brushed motor architecture, simple shade design, and conservative opening speed. Reliability and cost stability usually outrank wow factor.

On a premium crossover, larger panoramic electric sunroof systems often justify brushless drive, laminated glass, tighter flush control, and more advanced wind deflectors. Cabin refinement becomes part of the brand promise.

For export programs, regional climate and compliance should shape the decision early. Heat load, snow conditions, dust exposure, and local homologation expectations can all alter the preferred sealing and control strategy.

This is where AEVS-style cross-domain analysis helps. Roof choices do not live alone; they interact with aerodynamic targets, optical roof appearance, body electronics, and overall perceived exterior quality.

A practical way to compare suppliers

A clean comparison model keeps teams from overvaluing brochure features. The strongest candidate in electric sunroof systems is usually the one with balanced margins, not the one with the longest feature list.

Use these decision points during evaluation

• Score suppliers on validated performance evidence, not presentation claims, including life-cycle data, climate tests, water management robustness, and plant assembly capability.
• Ask for tolerance stack analysis tied to actual body data, because many integration issues start where module assumptions ignore vehicle variation.
• Compare spare-part strategy and repair path early, since service access, calibration method, and replacement subassemblies strongly influence ownership cost.
• Require joint reviews across body, electronics, NVH, and exterior teams, because isolated approval often misses the real risks inside electric sunroof systems.

Final selection should protect the full program, not one metric

The best electric sunroof systems are the ones that stay quiet, drain predictably, close consistently, and survive abuse without turning into a warranty story.

If a proposal looks attractive on styling and piece price, but carries weak motor margin, uncertain drain routing, or incomplete NVH evidence, the risk usually surfaces later and costs more.

A practical next step is to build a short comparison sheet around motor type, sealing path, NVH behavior, failure history, and service complexity. That quickly reveals which electric sunroof systems fit the platform with the least hidden compromise.

In today’s exterior systems landscape, that kind of disciplined choice supports exactly what AEVS emphasizes: better vehicle aesthetics, stronger dynamic perception, and more dependable real-world quality.
