Electric Sunroof Systems Explained: Types, Drive Components, and Failure Points

Electric sunroof systems combine comfort, sealing, electronics, and precision mechanics—making them a frequent service focus in modern vehicles. For aftermarket maintenance professionals, understanding system types, drive components, and common failure points is essential for faster diagnosis, accurate repairs, and better customer outcomes. This guide explains how these systems work and where they most often fail.

What maintenance professionals really need to know first

When technicians search for electric sunroof systems, they usually want practical answers, not brochure-level definitions. Their core intent is to understand system layouts, identify likely fault sources, and shorten troubleshooting time.

For aftermarket service teams, the biggest concern is rarely the panel itself. Most repeat issues come from drive cables, guide rails, motor control, switch inputs, seals, drains, or poor calibration after repair.

The most useful service content therefore focuses on failure patterns, inspection logic, and repair judgment. General descriptions of comfort or styling matter far less than knowing why a roof sticks, tilts unevenly, leaks, or loses one-touch function.

This article prioritizes the parts and failure points that most directly affect diagnostic accuracy. It gives special attention to how different electric sunroof systems are built and how those design differences change repair strategy.

What is included in an electric sunroof system

Electric sunroof systems are integrated mechatronic assemblies. They combine a roof opening panel, frame, drive motor, transmission components, sliding or tilting mechanisms, seals, drainage paths, and electronic controls.

In service terms, the system should be viewed as three linked layers. The first is structural and sealing, the second is mechanical motion, and the third is electrical and software control.

If one layer fails, the customer may describe the symptom in a misleading way. A leak complaint may actually begin with frame distortion. A slow movement complaint may come from a voltage problem, not rail friction.

That is why effective repair starts with system thinking. Electric sunroof systems do not fail in isolation; they fail through interaction between load, alignment, contamination, wear, and control logic.

Main types of electric sunroof systems and how service needs differ

Not all sunroofs are built the same, and repair assumptions should change by architecture. The most common categories are pop-up, spoiler, inbuilt sliding, panoramic, and electrochromic glass roof systems.

Pop-up units are relatively simple. They mainly tilt upward for ventilation and use fewer moving guides. Common service issues include switch failure, motor wear, limited panel adjustment, and aged perimeter seals.

Spoiler sunroofs slide the glass panel above the roof skin rather than retracting into it. They are easier to package, but exposed travel can increase wind noise sensitivity and guide contamination.

Inbuilt sliding systems retract into the roof structure. They often deliver cleaner exterior styling, but they are more complex mechanically. Cable condition, guide shoe wear, timing errors, and roof cassette alignment become more critical.

Panoramic roof systems add size, weight, and multiple panels or shade mechanisms. These increase customer appeal but also multiply service risks. Motor torque demand, frame rigidity, synchronization, and water management all become more demanding.

Electrochromic roof systems reduce the need for mechanical shades in some designs. However, they introduce another failure layer involving dimming control, wiring integrity, glass electronics, and compatibility with body control modules.

For the aftermarket, identifying the exact system type before disassembly saves time. It determines whether the likely root cause is a simple actuator problem or a larger cassette, rail, or software issue.

Key drive components that make electric sunroof systems work

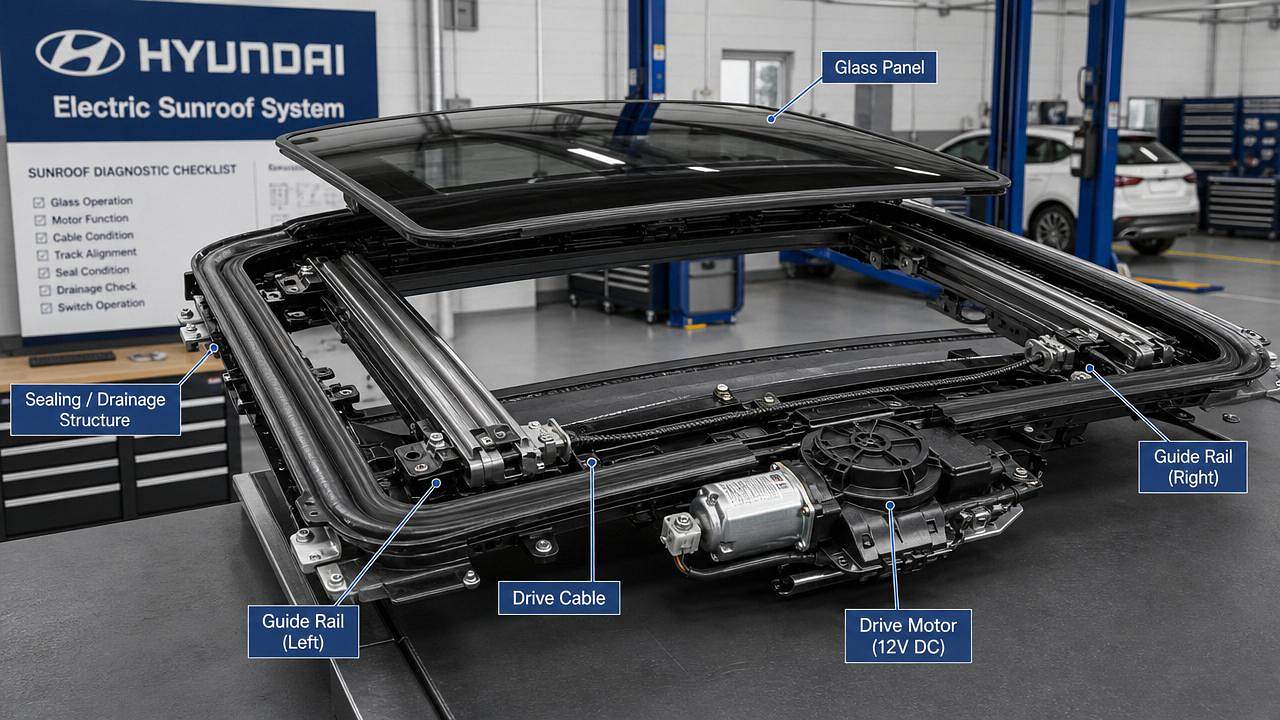

The drive motor is the obvious starting point, but it is only one part of the motion chain. In most electric sunroof systems, motor output is transferred through gears, cables, arms, sliders, and guide tracks.

The motor must deliver enough torque to overcome panel mass, seal compression, and rail resistance. If friction rises from dirt, dried grease, or damaged guides, the motor may stall or trigger anti-pinch protection.

Drive cables are frequent wear items, especially in sliding systems. They can stretch, fray, jump timing, or bind inside guide tubes. When this happens, the roof may tilt correctly but fail during slide movement.

Guide rails control movement path and panel position. If rails are bent, corroded, or contaminated, the roof may move unevenly, chatter, or stop before full closure. Premature cable or shoe wear often follows.

Lift arms and guide shoes translate cable movement into panel lift and slide action. Plastic elements in these assemblies are vulnerable to fatigue, cracking, and deformation, especially in high-temperature environments.

Many technicians replace the motor first because it is accessible. But if excessive drag remains in the mechanism, the replacement motor may fail again or produce the same intermittent symptom under load.

Electronic control parts that often affect diagnosis

Modern electric sunroof systems increasingly depend on electronic coordination. Beyond the motor itself, service teams must account for switches, relays, control modules, position sensing, anti-pinch logic, and network communication.

The roof switch can fail mechanically or electrically. Contact wear, contamination, and broken return springs can create false commands or no command at all. This should be verified before deeper mechanical teardown.

Control modules may be dedicated or integrated into a body control system. Low voltage, software faults, lost end-position memory, or interrupted LIN or CAN communication can all disable normal operation.

Position detection is critical for one-touch open, comfort close, and anti-pinch features. If the system loses its learned positions after battery disconnection or component replacement, operation may become erratic.

Anti-pinch calibration deserves special attention. A roof with rising drag may reverse unexpectedly even when no obstruction exists. Technicians should determine whether the issue is software sensitivity or actual mechanical resistance.

Because customer complaints often mention “it opens but will not close,” electronic logic should always be checked alongside current draw and travel smoothness. A purely mechanical conclusion can be misleading.

The most common failure points in electric sunroof systems

In real service environments, certain failure points appear far more often than others. Understanding these patterns helps technicians prioritize inspection rather than removing the entire assembly too early.

First, drain blockage is a major cause of leak complaints. Leaves, dust, seal debris, and body shop residue can obstruct drain tubes. Water then overflows into the headliner area, leading customers to blame the glass seal.

Second, seal aging can create wind noise, water intrusion, and increased closing effort. However, not every leak means the main seal has failed. On many systems, the seal manages splash while drains manage water collection.

Third, cable and rail wear cause the classic symptoms of grinding, hesitation, skewed closing, or one side moving ahead of the other. Once asymmetry appears, further operation can damage panel alignment and trim.

Fourth, lubrication breakdown leads to high effort and anti-pinch reversal. Using the wrong grease can worsen the problem by attracting debris or reacting poorly to temperature, so manufacturer-compatible lubricants matter.

Fifth, motor gear wear or internal thermal fatigue can cause intermittent function. The roof may work when cool, fail after repeated cycles, or respond only to manual assistance.

Sixth, panel adjustment errors after glass removal are common in the aftermarket. Even small height or fore-aft misalignment can create wind noise, uneven seal compression, and customer comebacks.

Seventh, shade systems on panoramic roofs introduce separate failure points. Shade tracks, fabric tension components, and secondary motors may fail independently while the glass roof still operates normally.

How to diagnose electric sunroof systems more efficiently

Efficient diagnosis starts with symptom classification. Ask whether the complaint involves leakage, noise, no movement, partial movement, uneven movement, reversal, or lost automatic function. Each path points to different likely causes.

Next, verify power supply and voltage under load. A weak battery, poor ground, or high-resistance connector can mimic motor failure. Basic electrical checks should come before removing trim or the roof cassette.

Then inspect for signs of mechanical drag. Listen for clicking, straining, or cable noise. Observe whether tilt and slide functions behave differently. A roof that tilts but will not slide often indicates transmission or rail problems.

Check drains with controlled water testing rather than immediately replacing seals. Confirm whether water exits properly at all corners. If not, clear the path carefully without damaging hoses or dislodging connections.

For electronically controlled systems, scan for fault codes where applicable and review calibration status. After any motor, module, or battery-related work, perform the relearn procedure specified for that vehicle platform.

If the roof reverses during closing, do not force it repeatedly. Measure current draw, inspect for contamination, and evaluate panel alignment. Reversal is often a symptom of resistance, not a fault in anti-pinch itself.

Finally, decide whether the repair should target components or the complete cassette. In heavily worn panoramic systems, partial replacement may save parts cost but increase labor risk and comeback probability.

Repair decisions: component replacement or full module replacement

One of the most practical questions for aftermarket professionals is how far to go with repair. The answer depends on part availability, labor hours, wear extent, and the reliability expected after service.

Motor-only replacement makes sense when electrical testing confirms poor output and the mechanism moves freely by hand or with reduced load. It is less appropriate when rails are noisy or travel is visibly uneven.

Cable or guide repair can be cost-effective on certain systems, especially where kits are available. But success depends on precise reassembly, timing, lubrication, and panel adjustment. Poor execution often causes repeat visits.

Complete cassette replacement is more expensive but can be the better business decision when multiple wear points coexist. This is common on older panoramic roofs with water damage, track wear, and synchronization issues together.

Service advisors should also consider customer expectations. A budget repair may restore function temporarily, but if noise, drag, and seal compression issues remain, the customer may still judge the outcome as unsuccessful.

Common mistakes that create repeat failures

Several avoidable mistakes cause unnecessary comebacks in electric sunroof systems. The first is treating every leak as a seal problem without checking drains, frame seating, and roof panel adjustment.

The second is adding lubricant without cleaning old contamination. Mixed grease, dust, and debris can create abrasive paste, increasing resistance instead of reducing it.

The third is replacing electrical parts before checking mechanical load. A new switch or motor cannot overcome bent rails, broken shoes, or hardened seals that overload the mechanism.

The fourth is skipping initialization after battery disconnect or module replacement. Without relearn, one-touch features and anti-pinch thresholds may not function correctly, even though hardware is sound.

The fifth is failing to test at operating temperature. Some faults appear only when the roof assembly expands in heat or when the motor warms after repeated use. Quick bay checks may miss these conditions.

What this means for the future aftermarket service landscape

As vehicles adopt larger panoramic roofs, integrated shades, and smart glass technologies, electric sunroof systems will become even more important in the service mix. Complexity is increasing faster than customer tolerance for failure.

For aftermarket workshops, this means diagnosis must become more structured. Technicians need confidence with mechatronic systems, not just trim removal and mechanical adjustment. Calibration and electronic verification will matter more.

It also means parts sourcing and technical data quality are becoming competitive advantages. Workshops that can identify the correct system architecture and likely failure path quickly will reduce labor waste and improve customer trust.

From an industry perspective, sunroof service now sits at the intersection of comfort, sealing, electronics, and lightweight body integration. That makes it highly relevant to the broader evolution of automotive exterior systems.

Conclusion

For aftermarket maintenance professionals, understanding electric sunroof systems is mainly about diagnosis and repair judgment. The most valuable knowledge is knowing how system type, drive components, and control logic shape failure patterns.

In practice, the usual trouble spots are drains, seals, cables, rails, guide shoes, motor output, and lost calibration. Fast, accurate service comes from separating electrical symptoms from mechanical resistance and confirming root cause before parts replacement.

When technicians approach electric sunroof systems as integrated mechatronic assemblies, they reduce comebacks, protect labor efficiency, and deliver better customer outcomes. That is the difference between a temporary fix and a dependable repair.
