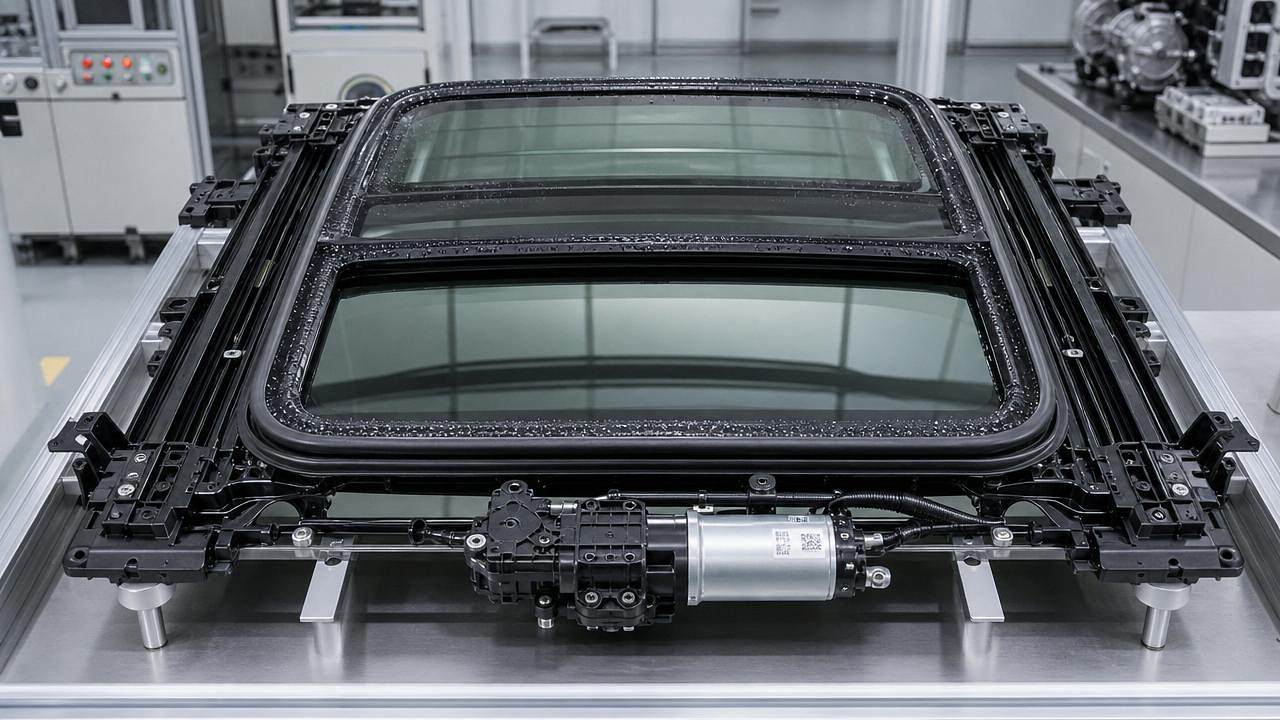

electric sunroof systems Selection Guide: Motors, Tracks, and Sealing Risks

electric sunroof systems Selection Guide: Motors, Tracks, and Sealing Risks

Selecting electric sunroof systems is no longer a simple sourcing decision based on size and styling.

The real value lies in assessing motor durability, track precision, sealing performance, NVH control, and long-term warranty risk under global vehicle platforms.

As NEV cabins demand more light, comfort, and intelligent glazing functions, electric sunroof systems must balance cost, supplier capability, and failure prevention.

This guide highlights technical checkpoints that help identify reliable sunroof solutions and reduce hidden lifecycle costs.

Why electric sunroof systems need checklist-based evaluation

Modern roof modules carry more responsibility than older sliding glass assemblies.

They influence cabin acoustics, body stiffness, water management, thermal comfort, software logic, and perceived vehicle quality.

A weak motor, imprecise guide rail, or unstable seal can create noise complaints, water ingress, and costly aftersales campaigns.

Checklist-based selection turns subjective comparison into measurable decision control.

For electric sunroof systems, the best decision is rarely the lowest initial price.

It is the design that survives vibration, temperature cycling, repeated operation, and real-world maintenance gaps.

Core checklist for evaluating electric sunroof systems

Motor and drive performance

• Verify motor torque margin under frozen seal, inclined parking, and high-temperature grease aging to prevent slow travel or stalled movement.
• Check cycle-life test data against expected vehicle life, including partial openings, anti-pinch reversals, and repeated ventilation positions.
• Confirm current draw, thermal protection logic, and controller response when electric sunroof systems operate near battery voltage limits.
• Inspect gear material, worm drive wear, cable tension stability, and lubrication compatibility across hot, cold, humid, and dusty environments.

Track, frame, and movement accuracy

• Measure rail straightness, slider clearance, and frame flatness because minor stack-up errors often become rattle, drag, or uneven glass closing.
• Validate synchronization between left and right tracks during tilt, slide, and close functions to avoid glass skew and seal compression loss.
• Review assembly datum strategy so electric sunroof systems remain adjustable after roof welding, painting, bonding, and trim installation.
• Assess corrosion protection on guide rails, fasteners, brackets, and drainage interfaces, especially for coastal markets and salted winter roads.

Sealing and drainage reliability

• Test primary and secondary seals under car wash pressure, wind-driven rain, body twist, and repeated opening after dust exposure.
• Confirm seal material resistance to ozone, UV, cleaning chemicals, thermal shrinkage, and compression set over multi-year operating conditions.
• Inspect drain tube routing, connector retention, and outlet blockage tolerance to prevent hidden water accumulation inside pillars or headliners.
• Require water test results for electric sunroof systems after vibration, thermal cycling, slam testing, and body torsion simulation.

NVH and perceived quality

• Evaluate wind noise at cruising speed, crosswind conditions, and partially open positions where turbulence may dominate user perception.
• Check motor sound signature, gear whine, rail friction, and end-stop impact because roof noise is highly noticeable in quiet EV cabins.
• Confirm sunshade movement smoothness, fabric tension, and blind rail damping to avoid flutter during rough-road driving.
• Benchmark electric sunroof systems against cabin sound targets, not only component-level laboratory noise measurements.

Software, safety, and diagnostics

• Validate anti-pinch sensitivity using different object sizes, temperatures, motor speeds, and seal friction conditions.
• Confirm position learning, power-loss recovery, fault code storage, and service reset procedures before platform integration.
• Check CAN or LIN communication stability when electric sunroof systems interact with body control modules and remote comfort functions.
• Review cybersecurity exposure if roof operation is linked to mobile apps, voice control, or over-the-air configuration changes.

Comparison table for supplier and design review

Application scenarios for electric sunroof systems

NEV platforms with quiet cabins

EVs expose roof noise more clearly because engine masking is absent.

Electric sunroof systems for NEVs should receive stricter NVH scoring, especially during acceleration, regenerative braking, and highway cruising.

Glass mass also matters because added roof weight affects center of gravity and energy efficiency.

Lightweight frame design and stable bonding help protect both driving dynamics and structural performance.

Panoramic roofs and large glass modules

Large panoramic designs increase daylight and perceived space, but they magnify tolerance and sealing challenges.

For these electric sunroof systems, frame rigidity, glass curvature, and roof aperture accuracy must be reviewed together.

Heat management is another decisive factor.

Low-E coatings, IR rejection, electrochromic dimming, and blind insulation can reduce air-conditioning load.

Premium models with smart glazing

Smart glazing adds user value, but it also introduces electronics, laminated layers, and optical uniformity requirements.

Electric sunroof systems with dimming glass should be checked for haze, response time, voltage stability, and long-term color consistency.

Integration should avoid service complexity.

A beautiful roof module loses value if replacement requires excessive calibration, trimming, or special handling.

Commonly overlooked risks

Seal aging is not visible during initial inspection

Fresh seals often look acceptable at launch.

The real test is compression recovery after heat aging, freeze exposure, dust contamination, and repeated glass closure.

Weak material selection can turn electric sunroof systems into high-cost warranty drivers after one or two seasons.

Drainage design can fail without component failure

Leaks are not always caused by broken seals.

Blocked drains, loose tube joints, poor outlet placement, or pillar interference can redirect water into sensitive interior areas.

Drainage validation should include leaves, dust slurry, detergent residue, and vehicle inclination.

Small tolerance drift can damage the full system

Track clearance, glass height, frame flatness, and seal pressure are connected variables.

A slight process drift may create wind noise first, then water entry, then motor overload.

Reliable electric sunroof systems require process capability data, not only prototype approval.

Aftermarket service planning is part of quality

Roof modules often need adjustment after accident repair, glass replacement, or trim service.

Clear service procedures reduce unnecessary part replacement and protect customer satisfaction.

Electric sunroof systems should include diagnostic guidance, calibration steps, and approved lubricant information.

Practical execution advice

1. Build a scorecard that separates motor, track, sealing, NVH, electronics, process capability, and serviceability into weighted categories.
2. Request validation reports from hot, cold, humid, dusty, high-speed, and rough-road conditions before approving electric sunroof systems.
3. Compare supplier data with vehicle-level targets, because component results alone may hide roof aperture and body tolerance problems.
4. Include warranty history, field failure analysis, and corrective action speed in supplier evaluation, not just quotation and lead time.
5. Run pre-production water, noise, and functional audits after paint, trim, headliner, and body control integration are complete.

The strongest reviews combine engineering evidence with manufacturing discipline.

Samples should be disassembled to inspect hidden rail wear, seal compression marks, cable routing, drain connections, and fastener control.

A strong supplier should explain not only what passed, but why the design remains stable during production variation.

Summary and next action

Electric sunroof systems influence comfort, safety perception, energy efficiency, and long-term vehicle quality.

The critical decision points are motor durability, track precision, sealing stability, drainage robustness, NVH control, and intelligent function integration.

Before final approval, create a checklist tied to platform targets, climate exposure, production tolerances, and service requirements.

Use it to compare electric sunroof systems with measurable evidence rather than appearance, promise, or unit price alone.

The next step is to audit shortlisted designs against real vehicle conditions and identify failure modes before launch timing becomes fixed.
