Thermal Management Models for EV Systems: What Inputs and Outputs Should You Compare?

Thermal Management Models for EV Systems: What Inputs and Outputs Should You Compare?

For technical evaluators, thermal management models only matter when they support decisions.

A model can look detailed yet still miss the variables that shape EV safety, range, and durability.

That is why comparison starts with one practical question.

Which inputs and outputs actually reveal whether the thermal management models reflect vehicle reality?

In EV programs, this is rarely limited to battery temperature alone.

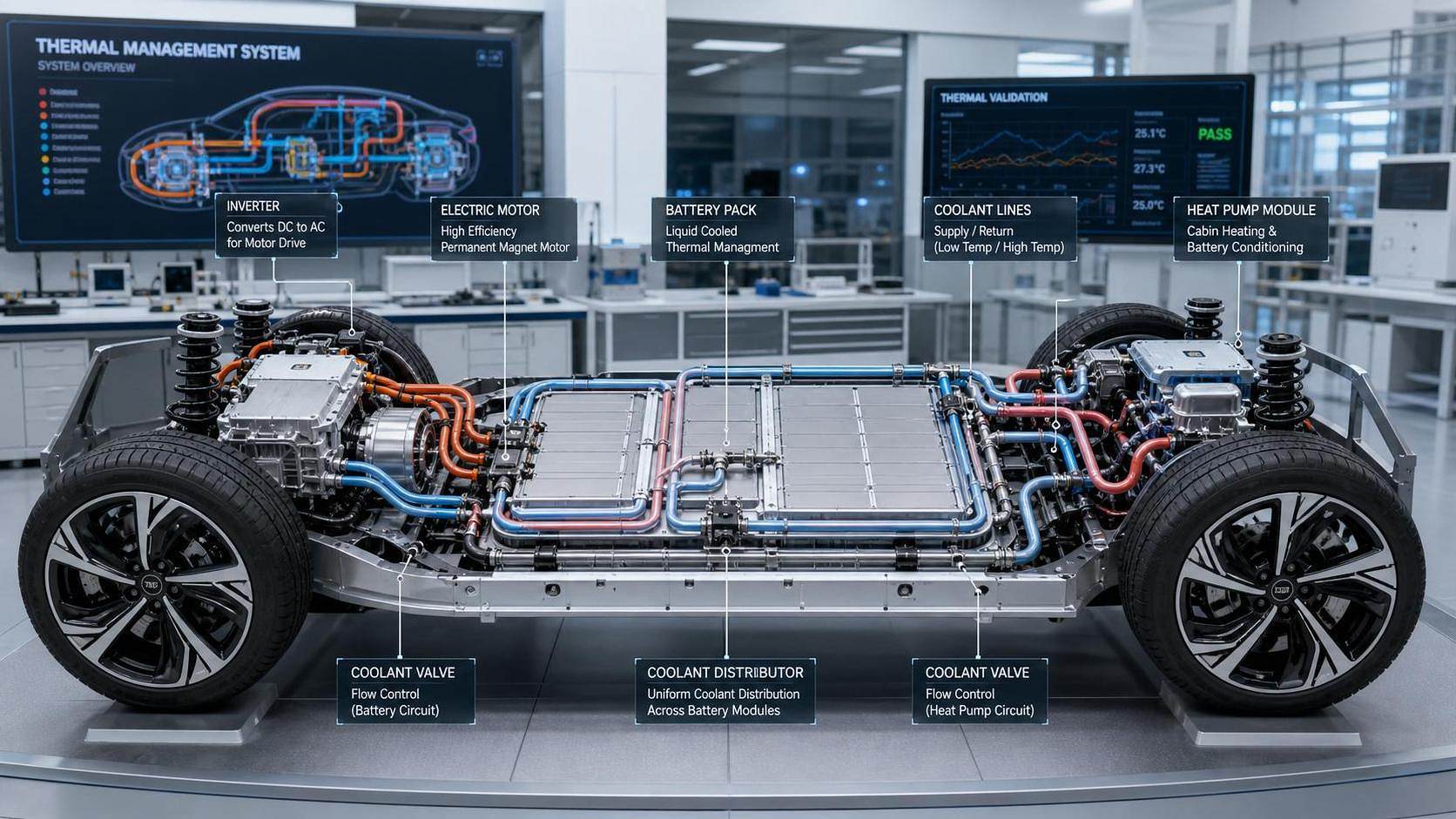

It usually involves the battery pack, power electronics, e-motor, cabin loop, and cooling controls.

The best thermal management models compare physical conditions, system responses, and efficiency trade-offs together.

That approach makes validation faster and cross-team decisions far more reliable.

Why comparison criteria matter

Many thermal management models fail because teams compare too few variables.

A close temperature match at one sensor point does not prove system accuracy.

It may hide poor assumptions about heat generation, flow distribution, or control timing.

From recent EV development trends, the stronger signal is integration pressure.

Battery preconditioning, heat pump logic, inverter cooling, and fast charging now interact closely.

This means thermal management models must be compared across operating states, not isolated snapshots.

What a good comparison should answer

• Does the model predict heat loads under realistic drive and charging events?
• Does it capture temperature uniformity, not just average temperature?
• Does it reflect control strategy response and actuator limits?
• Does it show the energy cost of keeping components within limits?
• Can different teams use the same results for design, calibration, and validation?

Key input variables in thermal management models

Inputs define whether thermal management models begin from a credible engineering baseline.

If the inputs are too simplified, even a polished solver will produce misleading outputs.

In practice, the most useful comparisons start with six input groups.

1. Ambient and boundary conditions

Ambient temperature is the obvious starting point, but it is not enough.

Compare solar load, humidity, wind speed, road load, and vehicle speed profile as well.

These factors strongly affect radiator performance, cabin demand, and underbody heat rejection.

2. Heat generation data

Compare battery internal resistance assumptions with state of charge and temperature dependence.

Do the same for inverter losses, motor copper loss, iron loss, and charger heat generation.

This is often where two thermal management models quietly diverge.

3. Coolant loop parameters

Check coolant type, specific heat, flow rate, pump map, valve logic, and pressure losses.

A small mismatch in branch flow can distort battery and inverter predictions quickly.

4. Component material and geometry data

Thermal conductivity, contact resistance, mass, and surface area should be aligned before comparison.

This matters especially for modules, cold plates, busbars, housings, and optical electronics.

In broader AEVS-linked systems, headlamp electronics and sensor housings also deserve attention.

5. Control strategy assumptions

Thermal management models should not ignore controller logic.

Compare thermostat thresholds, fan staging, pump speed scheduling, chiller activation, and derating triggers.

Without this layer, the model may fit hardware but miss actual behavior.

6. Duty cycle definition

Compare the driving cycle, charging profile, payload, grade, and repeated acceleration events.

A model validated on mild urban use may fail under towing, high-speed cruising, or DC fast charging.

The outputs worth comparing first

Once inputs are aligned, the next step is selecting outputs that reveal system quality.

Not every output carries equal decision value.

The strongest thermal management models are judged on outputs that connect to risk, performance, and efficiency.

Temperature level and distribution

Start with battery cell maximum, minimum, average, and delta temperature.

Then compare inverter junction temperature, motor winding temperature, and coolant inlet and outlet values.

Temperature spread often matters more than absolute average temperature.

Transient response

Evaluate how quickly the system reacts during launch, hill climb, fast charging, and soak recovery.

Thermal management models should capture lag, overshoot, and stabilization time.

This is critical for control calibration and hardware sizing.

Energy consumption of cooling and heating

Compare compressor power, pump power, fan power, heater load, and total auxiliary consumption.

This is where thermal management models connect directly to vehicle range.

A safe system that consumes too much energy may still be a weak design.

Control actions and operating states

Track valve positions, fan steps, pump commands, compressor duty, and derating events.

If two thermal management models produce similar temperatures but very different control activity, investigate further.

Performance impact metrics

Useful outputs include charging time, allowable peak power, torque derate onset, and predicted range shift.

These metrics help evaluators translate thermal behavior into business and product consequences.

How to compare thermal management models in a practical review

In real programs, comparison works best when it follows a simple structure.

The goal is not to generate more plots.

The goal is to expose design risk quickly.

1. Freeze the operating scenario before comparing any result.
2. Match sensor definitions, sampling rate, and time alignment.
3. Compare heat inputs before comparing temperatures.
4. Review peak values and full transients together.
5. Add an energy balance check for every major loop.
6. Flag any output that meets temperature targets by excessive auxiliary power.

This process keeps thermal management models from passing review on narrow criteria.

It also supports cleaner communication between simulation, test, controls, and component teams.

Common mistakes that distort comparison

Several issues repeatedly weaken thermal management models during evaluation.

• Using steady-state data to judge a strongly transient system.
• Comparing pack average temperature while ignoring cell-to-cell gradients.
• Assuming perfect coolant distribution across branches.
• Skipping sensor offset and thermal lag correction.
• Validating one ambient condition and generalizing too broadly.
• Ignoring thermal interaction with exterior components and airflow packaging.

That last point is becoming more important.

Low-drag wheel designs, front fascia airflow paths, lamp packaging, and sensor placement can shift cooling performance.

For organizations like AEVS, this wider systems view is where technical credibility grows.

A useful comparison matrix

What strong thermal management models finally deliver

Strong thermal management models do more than reproduce lab data.

They help teams choose between hardware changes, software tuning, and packaging trade-offs.

They also reveal whether a design meets future charging, performance, and durability targets.

For that reason, comparison should stay disciplined.

Start with realistic inputs.

Then compare outputs that expose thermal limits, control behavior, and energy cost together.

That is the point where thermal management models become decision tools rather than presentation material.

If your next review uses that framework, validation becomes clearer, faster, and much more actionable.
