Brake Airflow Optimization Air Guides: Key Design Factors for Cooling Efficiency

Brake Airflow Optimization Air Guides: Key Design Factors for Cooling Efficiency

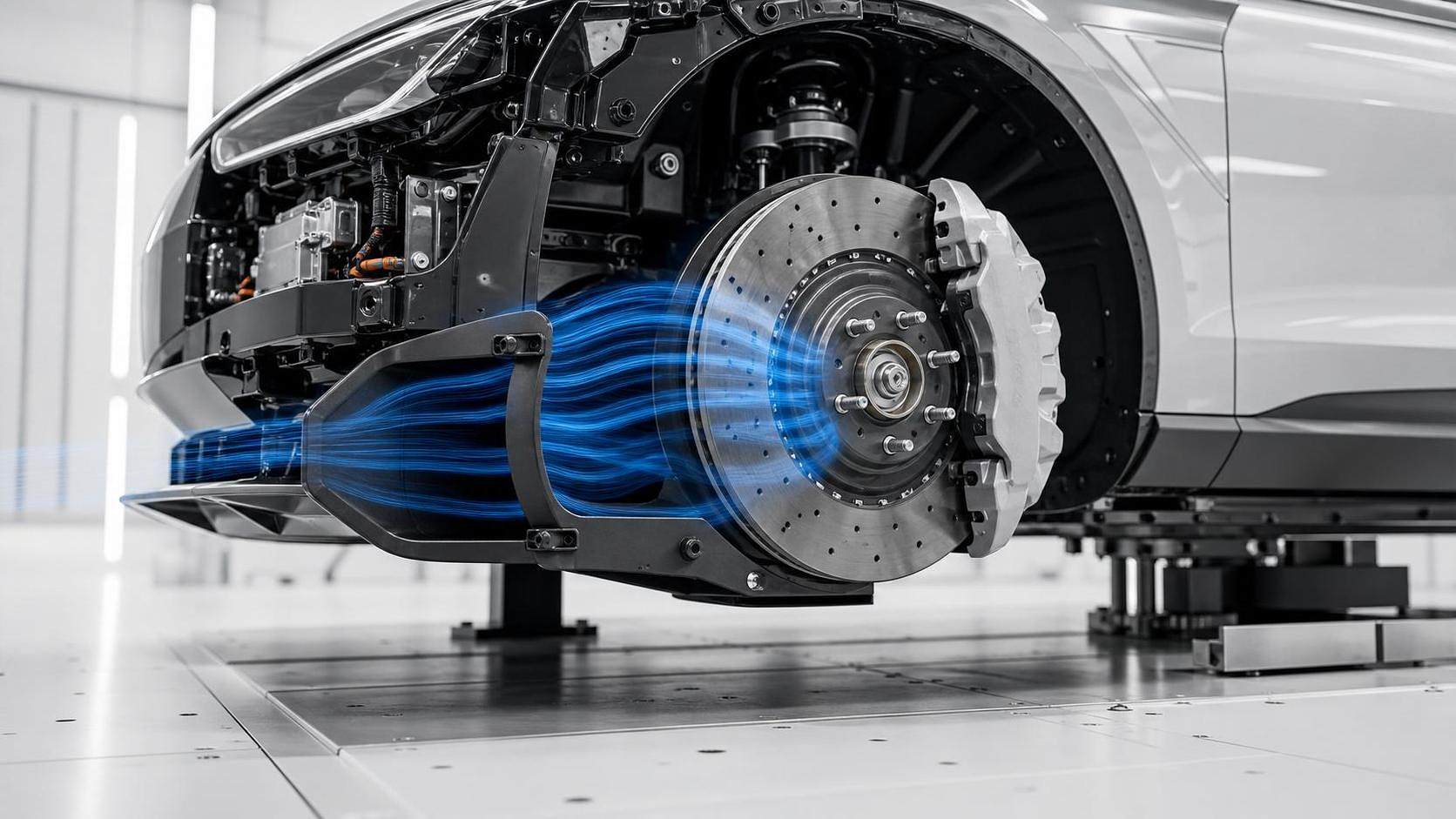

For project teams developing EVs and performance vehicles, brake airflow optimization air guides sit at the intersection of thermal control, drag management, and wheel-end reliability.

They look simple on paper, yet their impact reaches rotor temperature stability, pad wear, bearing life, and even customer perception during repeated heavy braking.

That matters even more in modern platforms.

Battery-electric vehicles often carry higher mass, deliver instant torque, and use wheels designed for low drag. Those choices tighten the cooling window around the brake system.

This is where brake airflow optimization air guides become a practical engineering lever, not just an aerodynamic accessory.

The core question is straightforward: how do you move enough air to the rotor and caliper without creating packaging conflict, debris risk, or unnecessary aerodynamic penalty?

The answer depends on a disciplined balance of inlet capture, flow direction, pressure recovery, wheel interaction, and production feasibility.

Why Brake Cooling Design Has Become More Complex

Traditional brake cooling design already required compromise. EV packaging and low-drag wheel programs have made those tradeoffs sharper.

A closed wheel style may improve range, yet it can reduce natural ventilation around the disc. Larger brake packages then need more controlled airflow.

Regenerative braking changes the duty cycle, but it does not remove thermal risk.

Emergency stops, mountain descents, towing events, and repeated high-speed decelerations still create heat peaks that demand robust brake airflow optimization air guides.

In practice, programs now evaluate brake cooling alongside aero targets, underbody sealing, splash protection, and cost-per-vehicle. That broadens the decision set early.

What Effective Brake Airflow Optimization Air Guides Must Achieve

A good design does more than blow air toward the wheelhouse.

It must capture useful high-energy airflow, preserve momentum through the duct path, and deliver that air to the rotor region where convective cooling matters most.

Most programs judge success against several linked outcomes:

• Lower peak disc and caliper temperatures during defined brake events
• Faster temperature recovery between repeated stops
• Minimal drag increase at cruising speed
• No conflict with steering, suspension, or wheel travel
• Acceptable durability under stone impact, water, salt, and ice loading
• Stable manufacturing quality across volume production

That list explains why brake airflow optimization air guides should be reviewed as a system, not as an isolated plastic part.

Key Design Factor 1: Inlet Location and Air Capture Quality

The inlet decides whether the guide receives clean, energetic flow or weak, turbulent air.

An inlet placed in a low-pressure wake will struggle, even if the downstream guide geometry looks refined in CAD.

This is why brake airflow optimization air guides are often developed with underbody aero surfaces, deflectors, and bumper-side flow structures at the same time.

Useful questions at concept stage include:

• Is the inlet exposed to consistent ram air across ride heights?
• Does wheel wake contamination reduce mass flow?
• Will road spray or debris block the opening over time?
• Does the inlet shape create avoidable pressure loss?

A smaller, better-placed inlet often performs better than a larger opening exposed to unstable flow.

Key Design Factor 2: Flow Path Geometry and Pressure Loss Control

Once air is captured, the path must protect it.

Sharp turns, abrupt section changes, and rough internal surfaces can erode pressure and reduce delivered cooling flow before air reaches the brake assembly.

For brake airflow optimization air guides, the geometry should support smooth turning, gradual transitions, and controlled exit direction.

This usually means fewer sudden contractions, more stable cross-sections, and careful management of local separation zones.

In CFD reviews, teams should look beyond colorful velocity plots. Pressure drop, mass flow stability, and sensitivity to steering angle tell the more useful story.

Key Design Factor 3: Targeting the Rotor, Hat, and Caliper Regions

Cooling efficiency depends on where the air lands.

Directing flow only at the outer wheelhouse rarely delivers the strongest temperature reduction.

High-performing brake airflow optimization air guides typically aim at the inner rotor face, disc hat region, or ventilation entry paths, depending on brake architecture.

The rotor itself acts like a pump. Ventilated discs can pull air through internal vanes when the incoming stream is properly aligned.

That interaction is critical.

A guide that feeds the disc effectively may outperform a design with higher total airflow but poorer targeting.

Key Design Factor 4: Wheel Design Interaction

Wheel styling and brake cooling can either support each other or work against each other.

Low-drag wheels, aero covers, and narrow spoke openings may reduce pressure exchange around the brake zone. That raises the burden on brake airflow optimization air guides.

On the other hand, spoke geometry can sometimes help extract hot air if the rotating wheel creates a favorable pumping effect.

This is why wheel and guide development should not happen in separate silos. A strong design review compares wheel variants, brake temperatures, and vehicle drag together.

Key Design Factor 5: Packaging Through Steering and Suspension Motion

A concept can look excellent in static position and fail immediately in dynamic packaging review.

Brake airflow optimization air guides must survive full steering lock, jounce, rebound, tire growth, snow buildup, and manufacturing tolerance stack-up.

Clearance around knuckles, control arms, drive shafts, and sensor harnesses is often tighter than expected.

More importantly, local flow performance can change with steering angle. A guide that cools well straight ahead may lose effectiveness during corner-entry braking.

That makes kinematic validation and transient simulation worth the effort early in the program.

Key Design Factor 6: Material Choice and Durability

The best airflow concept still has to live in a harsh environment.

Road debris, thermal cycling, water exposure, and curb strikes can damage poorly chosen materials or weak mounting features.

For brake airflow optimization air guides, material decisions often involve impact resistance, heat tolerance, weight, and molding consistency.

Mounting strategy matters just as much. Flexible retention can help with impact survival, but excessive movement may reduce targeting accuracy and create NVH concerns.

In program reviews, durability testing should include contamination and winter-service scenarios, not only clean lab conditions.

Simulation, Testing, and Standards Alignment

No single method is enough.

Effective brake airflow optimization air guides are usually validated through CFD, bench thermal assessment, and vehicle testing under representative duty cycles.

CFD helps rank concepts early and expose separation, recirculation, and wheel interaction effects. Vehicle testing then confirms whether modeled gains survive real road inputs.

From a program management view, the important point is correlation. If simulation and test logic are not aligned, decision speed slows and late changes become more likely.

Teams should also track applicable internal thermal criteria and market-specific compliance requirements linked to braking performance, durability, and wheel-end safety.

Common Program Mistakes

• Treating brake airflow optimization air guides as a late fix after wheel styling is frozen
• Chasing peak airflow numbers without checking rotor targeting quality
• Ignoring steering-angle sensitivity in thermal validation
• Overlooking stone retention, clogging, or winter blockage risks
• Approving geometry that cannot hold tolerance in mass production
• Reviewing drag and brake cooling in separate decision loops

Most of these problems are avoidable when thermal, aero, chassis, and manufacturing teams work from one shared validation plan.

A Practical Decision Framework

1. Define brake temperature targets by vehicle use case, not by generic benchmark.
2. Lock inlet zones early with aero and wheel teams.
3. Compare concepts using pressure loss, delivered mass flow, and rotor targeting.
4. Check package clearance through full vehicle motion.
5. Validate durability under debris, water, salt, and ice exposure.
6. Correlate CFD with road or track thermal data before release.

That process keeps brake airflow optimization air guides tied to measurable outcomes instead of assumptions.

Closing View

Brake airflow optimization air guides are now part of mainstream vehicle efficiency and reliability engineering, especially in EV and premium wheel-end programs.

The strongest designs come from early cross-functional work, disciplined flow-path control, realistic wheel interaction studies, and robust durability validation.

When those pieces align, cooling efficiency improves without giving away aero performance or manufacturing confidence.

For teams managing complex delivery timelines, that is the real value of better brake airflow optimization air guides: fewer late compromises, stronger thermal margin, and a cleaner path to launch.
