Wheel Lightweighting in Wheel Design: Key Trade-Offs in Strength, Cost, and Efficiency

Wheel Lightweighting in Wheel Design: Key Trade-Offs in Strength, Cost, and Efficiency

In wheel design, lightweighting is often discussed as if it were a simple mass-reduction exercise. It is not. A lighter wheel changes how a vehicle accelerates, brakes, rides, and manages energy, but every gram removed has to be defended against impact, cyclic fatigue, thermal loading, corrosion exposure, and manufacturing variability. That is why wheel lightweighting in wheel design is best understood as a controlled redistribution of material rather than a race toward the lowest possible weight.

This matters even more in battery electric vehicles and high-performance applications. EVs benefit from lower unsprung mass and lower rotational inertia, yet they also impose unusual demands: higher curb weight, strong regenerative braking, large and immediate torque delivery, and increasing pressure to integrate wheel styling with aerodynamic performance. In practice, the wheel engineer is balancing structural mechanics, process capability, and cost discipline at the same time. A visually thin spoke section or a lighter barrel profile may look efficient on paper, but the real question is whether that geometry survives pothole strikes, meets fatigue targets, and can be produced consistently at volume.

What lightweighting actually means in wheel engineering

A common misunderstanding is to treat all wheel mass as equally important. In reality, where the mass sits matters almost as much as how much of it there is. Material removed from the outer barrel has a different effect on rotational inertia than material removed near the hub. Material removed from a spoke window may improve airflow and reduce weight, but it can also change stiffness distribution and stress concentration. So when engineers talk about wheel lightweighting, they are usually referring to one or more of the following:

• Reducing total wheel mass while preserving required load rating and durability.
• Lowering rotational inertia by removing mass farther from the axis.
• Optimizing section thickness and spoke geometry through simulation and validation testing.
• Selecting a manufacturing route that enables thinner, more controlled sections without unacceptable scrap or cost.

That last point is where many concept discussions become unrealistic. A geometry that is feasible in a forged wheel may be risky or uneconomical in low-pressure casting. The lightweighting path is therefore tied to process choice from the start, not added afterward.

Strength is not a single requirement

When teams debate “strength,” they often mix together several failure modes that should be considered separately. A wheel that passes radial fatigue may still be vulnerable in cornering fatigue. A design that performs well in laboratory durability can still be exposed by impact events such as curb strikes or potholes. In markets governed by standards and test regimes such as SAE, JWL, VIA, ECE, or OEM-specific protocols, lightweighting decisions are constrained by the exact test environment, not by a generic idea of robustness.

This is why aggressive mass reduction often shifts the design challenge from average stress to local stress management. Thin spoke roots, hub transitions, lug-seat areas, and flange regions become more sensitive to geometric discontinuities. Finite element analysis helps identify these zones, but simulation alone is not a guarantee. Aluminum wheel performance is heavily influenced by casting integrity, grain flow, heat treatment consistency, residual stress, and machining quality. Two wheels with similar CAD geometry can behave differently if their process windows are different.

For technical evaluators, a useful question is not “How light is the wheel?” but “Which durability margins were consumed to reach this weight, and where?” That changes the discussion from headline numbers to engineering credibility.

Why process choice sets the realistic boundary

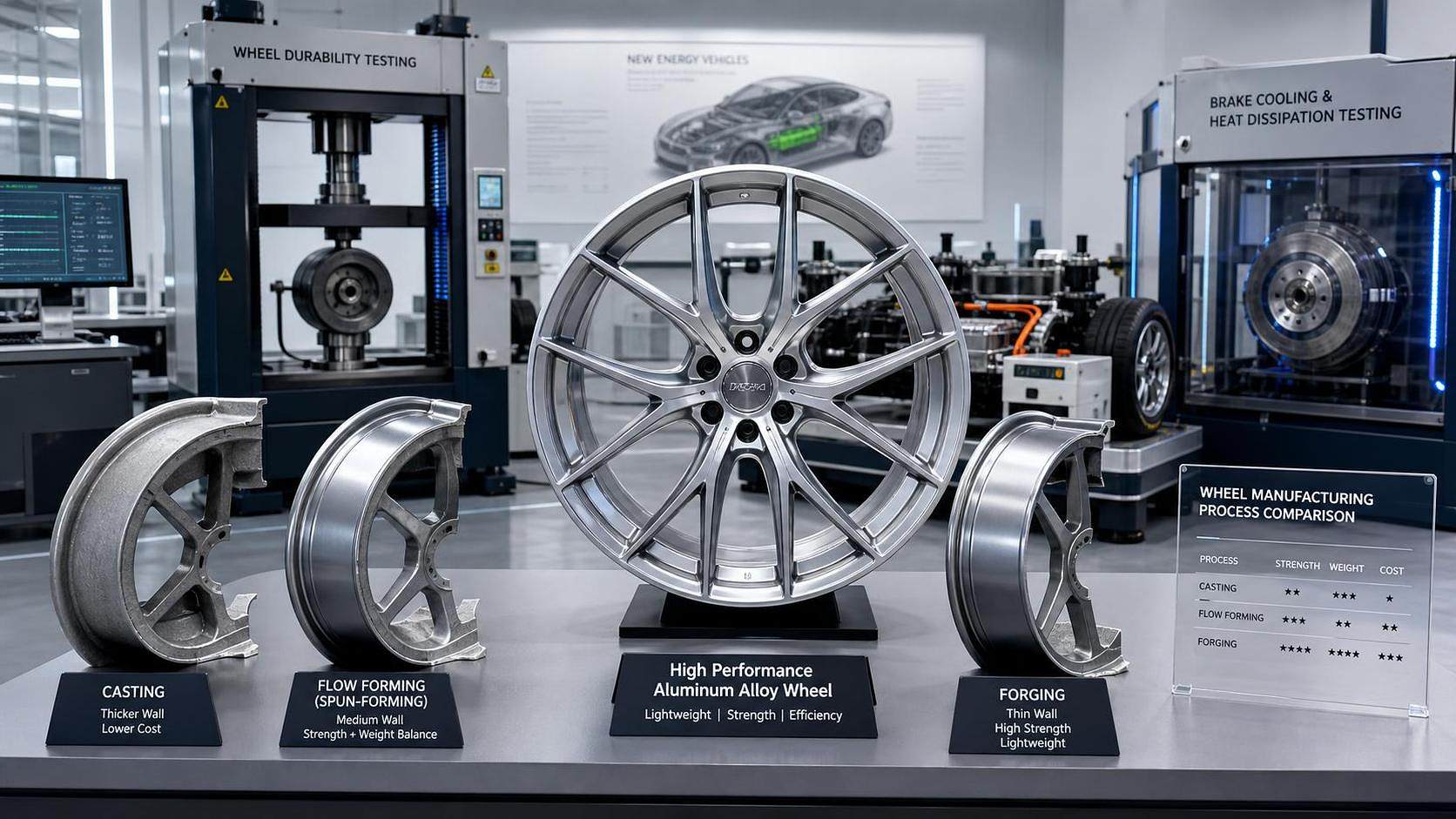

Aluminum alloy wheels are commonly produced through low-pressure casting, flow forming, or forging, with hybrids and process refinements in between. These routes are not interchangeable from a lightweighting standpoint.

This is one of the clearest trade-offs in wheel lightweighting wheel design decisions. A forged wheel can achieve weight targets that are difficult for a cast wheel to match, but the cost structure is fundamentally different. A technical evaluator comparing suppliers should be careful with direct weight comparisons unless process route, load class, wheel size, and test requirements are held constant. Without that context, “lighter” may simply mean “built to a different economic and validation model.”

Efficiency gains are real, but they are not isolated from vehicle architecture

The efficiency argument for lighter wheels is valid, especially in EVs, yet it is easy to oversimplify. Lower wheel mass reduces unsprung weight and can improve suspension response. Lower rotational inertia helps acceleration and deceleration. In some vehicle programs, it can also contribute to incremental range improvement. But those gains are inseparable from tire selection, brake package size, ride tuning, and aerodynamic treatment.

For example, a wheel optimized only for lower mass may end up requiring a geometry that worsens brake airflow or increases drag. Conversely, a low-drag wheel design with more closed surfaces may help energy consumption at cruising speed, but it can complicate thermal behavior around brakes. This is especially relevant for heavier vehicles, performance EVs, or applications with repeated high-load braking. The right solution is rarely the lightest wheel in isolation; it is the wheel that best fits the full thermal, dynamic, and aerodynamic package.

That is why leading evaluations increasingly look beyond mass-per-wheel and ask for a fuller engineering picture: modal stiffness, brake cooling implications, drag contribution, and the interaction between wheel design and tire rolling resistance strategy.

Cost pressure usually shows up in hidden places

The visible cost of lightweighting is higher-grade processing, tighter tooling, and more demanding quality control. The less visible cost appears later. Thin-wall designs can narrow process tolerance windows. Scrap sensitivity may rise. Machining stability may become more critical around lug interfaces and hub bores. Surface finishing can also become less forgiving if the underlying structure leaves little room for cosmetic correction.

Raw material volatility adds another layer. Since aluminum cost movements directly affect wheel economics, a design that relies on expensive process capability to save a modest amount of material does not always produce the most resilient business case. In premium performance programs, that may be acceptable. In high-volume NEV platforms, purchasing and engineering teams usually need a more balanced answer: enough mass reduction to support efficiency targets, but with production stability that protects launch timing and warranty exposure.

This is where supplier maturity matters. Lightweighting claims are more credible when supported by repeatable process control, not only by prototype test success. Technical evaluators should look for evidence that the manufacturing route can hold the intended geometry and material condition consistently across production volume.

Where misunderstandings usually appear

Several recurring misconceptions distort wheel assessments.

• A lower wheel weight does not automatically mean a better wheel. The relevant question is whether the mass reduction preserves the required safety and durability envelope.
• A stronger process route does not guarantee a better total outcome. Forging can unlock lower weight, but not every vehicle program needs that cost structure.
• Aerodynamic wheel styling and structural optimization can conflict. Closed designs may help drag, yet they can change brake cooling behavior and visual design constraints.
• Laboratory pass results are necessary, but they do not erase concerns about process consistency, road damage exposure, or field-use variability.

These are not minor details. They determine whether a wheel concept remains a promising prototype or becomes a scalable, certifiable product.

How to judge a lightweighting proposal with more precision

A disciplined evaluation framework usually starts with the intended vehicle duty. Is the wheel for a mass-market electric crossover, a performance sedan, a commercial derivative, or a premium aftermarket fitment? Wheel size, tire package, brake architecture, and target market regulations change the acceptable trade space.

After that, four questions tend to separate robust proposals from superficial ones:

• Where was mass removed, and what did that do to inertia, stiffness, and local stress concentration?
• Which validation standards or OEM protocols define the acceptance threshold?
• What process capability supports the geometry in serial production?
• How does the wheel interact with aerodynamic drag, brake thermal behavior, and NVH expectations?

A wheel supplier that can answer these questions clearly is usually offering more than a styling-led lightweight claim. They are showing that the design has been treated as a full system component, which is the correct standard for modern EV and performance platforms.

In practical terms, wheel lightweighting in wheel design should be judged as an optimization problem with hard boundaries, not as a symbolic commitment to weight reduction. The best wheels are rarely the absolute lightest ones. They are the ones that place material intelligently, use a process route matched to the performance target, and maintain credibility under the standards, thermal loads, road impacts, and cost constraints that real vehicle programs impose.

For technical evaluation work, that mindset is more useful than any headline weight figure. It keeps attention on what actually decides program success: repeatable durability, manufacturable geometry, and measurable vehicle-level benefit.
