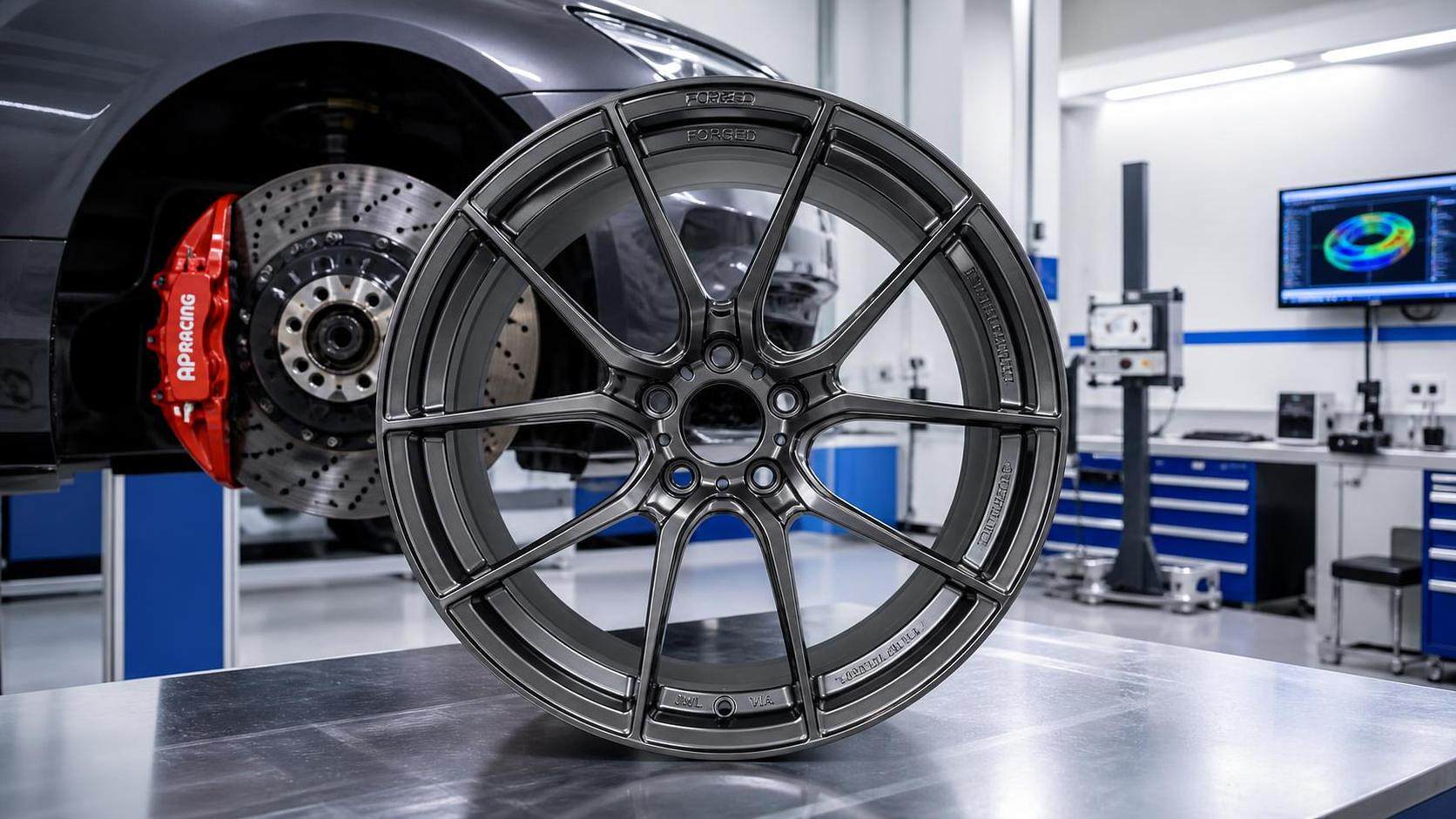

How to Specify Lightweight Custom Forged Wheels for Performance Vehicles

Choosing custom forged wheels lightweight enough for a performance vehicle is not a styling exercise. The right specification reduces unsprung mass without sacrificing fatigue life, brake clearance, impact resistance, or predictable handling at speed. The wrong one can look correct on a fitment sheet yet create steering interference, overloaded rear corners, poor brake cooling, or compliance problems.

The practical starting point is simple: define the vehicle, duty cycle, tire package, and legal market before discussing spoke design or finish. A forged wheel should be engineered around the vehicle's real loads, not selected from a generic “lightweight” claim.

Start with the vehicle duty cycle, not the target wheel weight

Many wheel programs begin with a desired mass reduction: “Make it 2 kg lighter per corner.” That can be a useful objective, but it is not a specification. Wheel mass is only one result of material selection, geometry, rim width, barrel profile, load rating, and validation margin.

A road-focused sports coupe, a heavy battery-electric performance sedan, and a track-driven supercar may all use a 20-inch wheel, but they should not receive the same engineering brief. The EV may apply much higher instantaneous axle torque and carry substantially greater curb weight. The track vehicle may see repeated high-temperature braking cycles, aggressive kerb strikes, and high lateral loads. A road car used mainly for daily driving needs more tolerance for potholes and poor pavement than a vehicle supported by a controlled circuit environment.

Before requesting quotations, document:

• Vehicle curb weight, gross axle weight ratings, and loaded axle distribution
• Peak motor or engine torque characteristics, especially for high-torque EV applications
• Wheel diameter, nominal width, tire size, and approved tire load index
• Brake package dimensions, including caliper envelope and rotor diameter
• Intended use: street, occasional track use, sustained track use, or mixed conditions
• Target markets and the approval route required for road use
• Suspension travel, steering lock, and any planned lowering or camber changes

This information prevents a common failure in aftermarket sourcing: selecting a wheel based on front-face clearance alone while ignoring barrel clearance at full suspension compression or steering lock.

What “custom forged wheels lightweight” should mean in a specification

Lightweight should mean optimized mass for a verified load case, not merely a low number on a product page. A wheel may be light because it has a narrow rim, a modest load rating, a less demanding test regime, or a design intended for a different vehicle class. Comparing mass without comparing these conditions is misleading.

For a serious performance application, the purchase specification should require the supplier to state wheel mass by exact size, width, offset, center-bore arrangement, and finish. A quoted weight for a 19 x 8.5 wheel does not establish the weight of a 20 x 10.5 rear wheel with a different offset and brake-clearance profile.

Ask for the complete wheel configuration, including valve hardware, center cap assumptions, and whether the stated mass applies before or after finish. Small items do not transform the project, but they matter when the program is justified by unsprung-mass reduction.

The real benefit of lower wheel mass is felt in suspension response, steering precision, acceleration, braking, and ride control. Those benefits are strongest when the reduction occurs near the rim, where rotational inertia is highest. Yet taking material out of the outer barrel without adequate analysis can reduce impact robustness. This is why a lighter wheel is not automatically the better wheel.

Material and forging route: ask for traceability, not a label

“Forged aluminum” is not enough detail for an approval decision. The evaluator should understand the alloy family, heat treatment, billet origin, forging route, machining limits, and quality controls. Common high-strength aluminum alloys are used in forged wheel production, but alloy naming alone does not confirm final performance. The result depends on processing discipline and the final geometry.

There is also an important distinction between a one-piece forged wheel and a multi-piece forged assembly. Neither is inherently superior. A one-piece wheel can offer lower mass and fewer sealing interfaces. A multi-piece wheel can provide useful flexibility in width and offset, along with serviceability in some applications. The trade-off is usually additional joints, hardware, assembly controls, and potentially more mass.

Request material certificates and production traceability for the supplied wheel batch. For a custom program, it is reasonable to ask how the manufacturer controls billet identification, heat treatment records, machining revision levels, and final inspection. A supplier that cannot clearly explain these basics may still produce attractive wheels, but it is difficult to establish confidence in repeatable performance.

Geometry controls strength, fitment, and driving behavior

Spoke count is a visual choice only at first glance. In practice, spoke section, spoke-to-hub transition, window shape, rim flange profile, and barrel thickness determine how loads travel through the wheel. A thin-looking multi-spoke design may be perfectly viable if the load paths and sections are engineered correctly. A dramatic five-spoke design may require more material in critical areas than expected.

Pay particular attention to the hub area and spoke roots. These are heavily loaded regions and should not be judged by appearance. Sharp internal transitions, aggressive pocketing, or very thin material around bolt seats deserve careful review. The wheel center must also match the vehicle's bolt pattern, pitch-circle diameter, center-bore strategy, seat type, and fastener engagement requirements.

Offset deserves the same scrutiny. Moving the wheel outward may improve visual stance and create suspension clearance, but it can increase bearing loads and alter scrub radius. Moving inward may create fender clearance while causing contact with a strut, damper, or brake hardware. Offset changes should be assessed against the vehicle’s suspension kinematics, not against flush-fitment photographs.

A useful fitment review includes a 3D scan or dimensional envelope of the brake caliper and relevant suspension components. A two-dimensional caliper template can identify obvious conflicts, but it cannot always account for barrel taper, wheel rotation, suspension movement, balance-weight placement, or future brake upgrades.

Brake clearance is more than caliper clearance

Performance vehicles need clearance around the caliper, but they also need a wheel design that does not compromise brake airflow. Large, open windows can assist airflow, although the result depends on rotor design, wheel rotation, underbody flow, and the vehicle’s ducting. A low-drag aero face may improve range or high-speed efficiency in an EV, yet it can change heat rejection around the brake system.

Do not treat airflow as a styling debate. For demanding track applications, confirm the brake package with thermal testing or engineering analysis appropriate to the program. AEVS follows this wheel-and-brake relationship closely because wheel aerodynamics, brake cooling, tire behavior, and vehicle efficiency are connected decisions rather than separate aftermarket accessories.

Load rating must reflect actual axle loads and impact exposure

Wheel load rating is often misunderstood. It is not a broad statement that a wheel is “strong.” It is a defined capacity under stated conditions. The rating must be sufficient for the vehicle’s maximum axle load after considering the intended wheel position, expected use, and the manufacturer’s recommended safety margin.

A staggered setup should not assume the same loading at every corner. Rear-wheel-drive vehicles, EVs with rear-drive bias, and vehicles carrying passengers or cargo can produce different front and rear demands. In a custom order, specify front and rear sizes separately and request the load rating for each exact wheel.

Pothole resistance also should not be inferred from static load capacity. Impact events are governed by tire sidewall, inflation pressure, vehicle speed, road geometry, wheel profile, and local rim design. Low-profile tires make this issue more severe because there is less sidewall to absorb energy. A wheel intended for a track-focused vehicle may not be the right choice for a daily-driven car operating on damaged urban roads.

One frequent mistake is compensating for uncertainty by specifying the highest possible load rating. That can force unnecessary mass into the wheel. Better practice is to define the credible load and use conditions accurately, then select a wheel validated for that application.

Validation and compliance should be written into the sourcing request

Forging is a manufacturing method, not a substitute for validation. The supplier should identify the test standard used, whether the submitted design and exact size were tested, and whether the evidence applies to the final production configuration.

Depending on target market and vehicle application, the review may involve regulatory requirements or recognized wheel test procedures associated with ECE, DOT-related market expectations, TÜV, JWL, VIA, SAE, or OEM-specific protocols. Requirements differ by jurisdiction and approval pathway. Confirm applicable obligations with the relevant authority, homologation partner, or legal compliance team before placing an order.

The documents worth requesting include:

• Dimensional drawing with size, offset, center bore, bolt pattern, and brake-clearance profile
• Declared load rating for each wheel configuration
• Test reports or certification evidence relevant to the target market
• Fatigue, radial, cornering, and impact validation scope where applicable
• Material and heat-treatment traceability
• Coating specification and corrosion-resistance test information for the intended environment
• Runout limits, balance requirements, inspection method, and warranty terms

Be precise about the phrase “tested design.” A test report for a related wheel family is useful background, but it is not always evidence for a different offset, wider barrel, altered spoke pocket, or revised mounting pad. Small design changes can materially affect stress distribution.

Finish, corrosion protection, and repairability are operational decisions

Finish is often deferred until the end of the project. It should not be. Machined, painted, powder-coated, and specialty finishes affect appearance, cleaning, chip resistance, and the ability to inspect the wheel surface for damage. In winter or coastal service, corrosion protection deserves particular attention around mounting faces, valve areas, and exposed hardware on multi-piece designs.

For a fleet, dealer program, or premium aftermarket line, define the acceptable cosmetic standard and repair policy early. A highly polished surface may satisfy a design brief but can make curb damage more visible and refinishing more complicated. A darker painted finish can be easier to maintain, though it may conceal early signs of cracking or impact damage during casual inspections.

Do not assume that a forged wheel is safely repairable after any impact. Repairs should follow the wheel manufacturer’s guidance. Cracks, deformation near the bead seat, or damage around bolt holes need specialist assessment and may require replacement.

A practical approval sequence

First, freeze the tire size and brake package. Second, define wheel diameter, width, offset range, center-bore method, and required load rating. Third, compare candidate designs using their exact production dimensions, not representative renderings. Then review validation evidence, finish requirements, manufacturing traceability, and lead-time controls before approving the final drawing.

A physical test fit remains valuable before a production release. Install the prototype with the intended tires, confirm caliper and suspension clearance, check steering lock and compression travel, and verify that wheel weights and valve placement do not introduce interference. For performance use, road evaluation should include steering feel, vibration, brake temperature behavior, and tire clearance under realistic load.

Do not approve based solely on an attractive CAD rendering. CAD establishes intent; prototype fitment and documented validation establish whether that intent is usable.

FAQ

Is a forged wheel always lighter than a cast wheel?

No. Forging can support efficient material use and high strength, but final mass depends on size, geometry, load rating, and design margin. Compare exact wheel specifications, not manufacturing labels alone.

Can I choose a lower load rating for track use because the car is lighter without passengers?

That is rarely a sound shortcut. Track driving can generate high lateral, braking, and kerb-impact loads. Select load capacity from the vehicle’s credible operating conditions and the wheel maker’s approved application data.

How much offset variation is acceptable?

There is no universal number. It depends on suspension geometry, brake clearance, fender clearance, tire width, and bearing-load implications. Validate the proposed offset on the actual vehicle.

Should EV performance vehicles use a different wheel specification?

Often, yes. High vehicle mass, rapid torque delivery, range sensitivity, and brake-airflow needs can change the design brief. The wheel, tire, and aerodynamic cover strategy should be assessed together.

The strongest custom forged wheels lightweight specification is therefore a controlled engineering brief: exact fitment, credible loads, documented validation, and a mass target that does not undermine durability. That approach produces a wheel that performs as intended long after the first installation.
