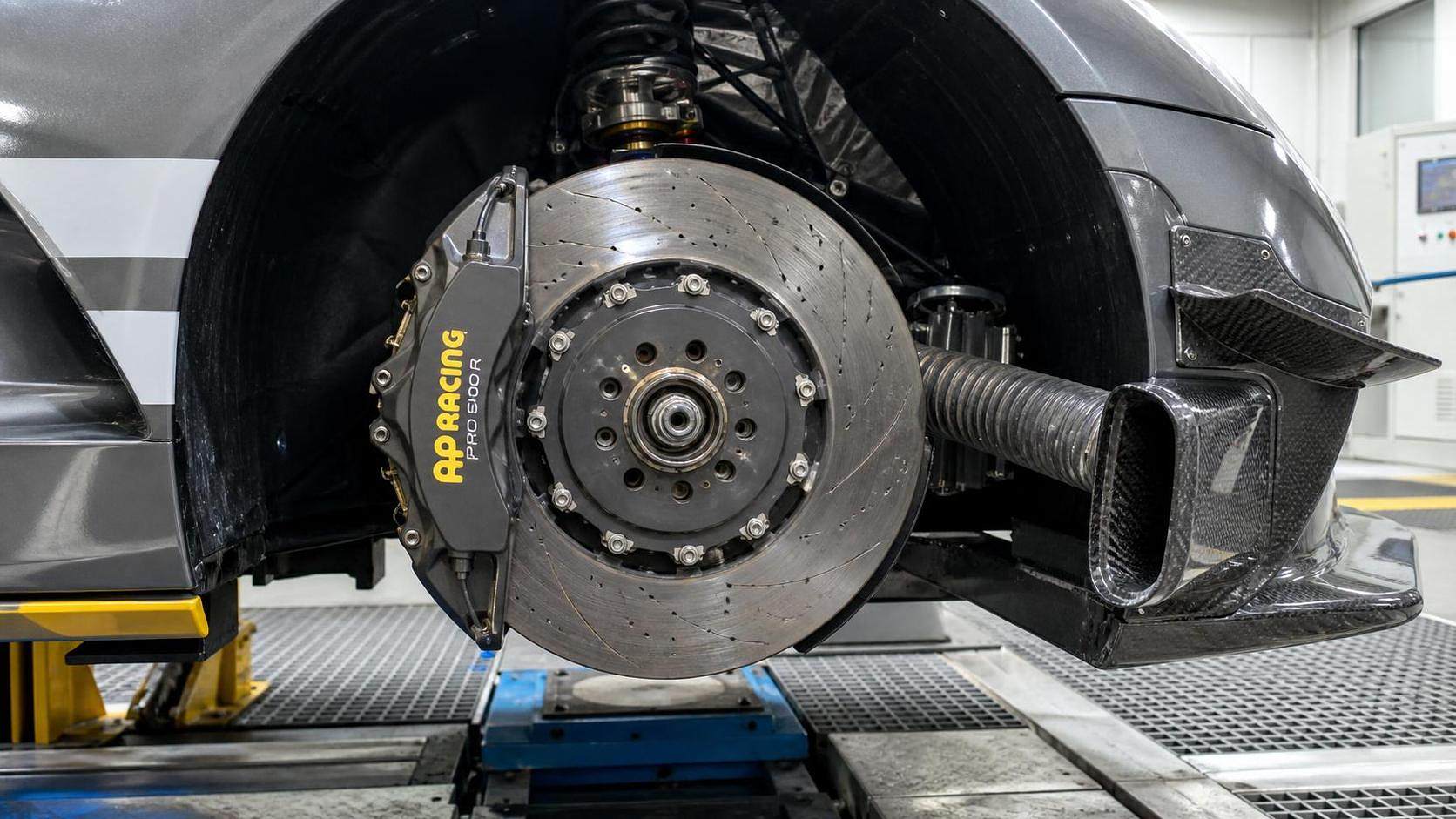

How Brake Airflow Optimization Ducts Improve Cooling Efficiency in Performance Vehicles

Start with the heat path, not the duct shape

When technical teams review brake airflow optimization ducts, the easy mistake is to judge the part by its appearance: inlet size, hose diameter, or how aggressive the scoop looks behind the bumper. That is the wrong starting point. Cooling efficiency improves only when air reaches the right brake zone, stays attached long enough to exchange heat, and exits without creating a stagnant pocket around the rotor or caliper.

On a performance vehicle, repeated heavy braking pushes heat into the disc, hat, pads, caliper body, wheel barrel, and nearby suspension surfaces. The duct is only one element in that thermal path. A sound evaluation asks a simple question at every stage: where does the air enter, where does it lose pressure, and where does the heat actually leave? If that chain is weak, a large duct can still deliver disappointing brake temperature control.

Check whether the duct feeds the rotor correctly

The most effective brake airflow optimization ducts usually target the rotor inlet region, especially the internal vanes, rather than just washing air across the outside face. Ventilated rotors work like centrifugal pumps. Once air enters the vane passages, rotation helps pull it through the disc and discharge it outward. That gives you more useful cooling than simply blowing air at the caliper bracket or wheel well liner.

During review, verify these points:

• Does the outlet aim toward the disc hat or vane entry area, not just the outer friction face?
• Is the discharge path blocked by the knuckle, splash shield, sensor wiring, or steering arm at lock?
• Is there enough clearance for suspension travel and wheel deflection under load?
• Does the design still work with the actual left- and right-hand rotor vane orientation being used?

That last point gets missed more often than it should. A duct can be neatly packaged and still underperform if the rotor vane direction and outlet orientation fight each other.

Do not evaluate the duct apart from the wheel

In real vehicles, the wheel can help the brake duct or cancel much of its benefit. Spoke openness, barrel shape, offset, and local pressure distribution around the wheelhouse all matter. Some low-drag wheel designs reduce the pressure difference needed to move hot air out of the brake area. Others improve extraction by encouraging pumping at the barrel and spoke window.

For a technical evaluator, this means bench assumptions are not enough. If a duct was developed with one wheel architecture and then paired with a more closed aero wheel, the cooling result can shift materially even when the brake hardware is unchanged.

Look for pressure recovery, not just a big inlet

A duct needs usable pressure at the inlet. On the vehicle surface, not every opening sees favorable stagnation pressure. Inlets placed in separated flow, behind disturbed grille structures, or too close to turbulent tire wake may look generous on CAD and still feed poor mass flow at speed.

This is where CFD becomes useful, provided it is read correctly. Ask where the total pressure is being captured and how much is lost before the air reaches the brake. If the design relies on a long, flexible hose with multiple bends, the apparent inlet area can become irrelevant. Pressure loss accumulates quickly through corrugation, sharp transitions, and crushed sections created by packaging compromises.

A good review habit is to trace the section changes from inlet to outlet. Sudden contractions, flat spots near chassis members, and abrupt discharge lips usually tell you where performance was traded away.

Use CFD as a screening tool, then challenge it

CFD-led airflow development is valuable in this area because the flow field around rotating wheels is messy and strongly three-dimensional. Still, thermal and aerodynamic reviewers should not accept attractive streamlines at face value. Ask what the simulation included.

• Was wheel rotation modeled?
• Were ride height, steering angle, and brake package geometry matched to the intended vehicle state?
• Did the study include wheelhouse liners, underbody panels, and shields that affect flow attachment?
• Was the comparison made at the same vehicle speed and brake thermal load condition?

If those boundary conditions move around, cooling claims become hard to compare. The best CFD reviews connect three outputs: air mass flow delivered to the brake zone, local temperature reduction at the rotor and caliper, and any drag or lift penalty introduced by the duct package. Looking at only one of the three usually leads to the wrong decision.

Separate rotor cooling from caliper cooling

These are related but not identical targets. Rotor temperature governs fade resistance, crack risk, and pad interface behavior. Caliper temperature affects fluid temperature, seal life, and pedal consistency. Some duct layouts favor one and do little for the other.

If your use case is track-day endurance or repeated mountain descent braking, rotor cooling tends to dominate the decision. If the package is compact and fluid temperature margin is the concern, caliper-side airflow deserves more scrutiny. The review should therefore match the cooling objective to the failure mode you are actually trying to control. Too many evaluations stop at “lower brake temperature” without defining which component matters most.

Check packaging under real motion, not static CAD only

Brake airflow optimization ducts often lose effectiveness after packaging revisions. A hose that clears in static position may kink at steering lock. A hard duct can sit too close to the tire shoulder under bump. The outlet may shift away from the rotor inlet once the wheel is turned and the knuckle rotates.

Review the assembly through full jounce, rebound, and steering travel. For performance applications, include thermal growth and local deformation of polymer duct sections near hot brakes. If the section distorts after repeated heat exposure, the airflow map you signed off in development may not survive actual use.

One practical rule: whenever a duct solution depends on very tight clearances to work, inspect service tolerance and assembly variation early. Cooling gains that disappear with normal production variation are not robust gains.

Watch for drag and contamination penalties

More brake cooling is not free. Air captured for the brakes can disturb underbody flow, affect front axle drag, and in some layouts alter lift balance. On EVs and other efficiency-sensitive platforms, this tradeoff matters even more because wheel drag and cooling flow can directly affect range performance.

There is also a contamination side. Inlets positioned low and forward may ingest water, grit, or rubber debris. That does not automatically make the design wrong, but it changes what has to be verified: drainage path, stone impact resistance, and whether accumulated debris blocks the outlet or abrades nearby components. A duct that cools well for ten laps but degrades quickly in mixed road use is a narrow solution, not a general one.

Tie the evaluation to the target market and approval path

For vehicles crossing multiple markets, the duct itself is rarely the regulated headline item, but the surrounding package still interacts with compliance work. Exterior openings, wheel coverage, splash protection, serviceability, and component retention all need to be checked against the vehicle program requirements and the destination market documentation set. For global programs, reviewers usually need to inspect the engineering release package, wheel and brake drawings, wheelhouse and underbody sections, and the applicable market compliance matrix for the vehicle configuration being assessed.

That matters because a duct solution acceptable on a track-focused derivative may not transfer cleanly to a road-biased trim with different wheel coverage, tire section width, ride height, or aero shields. The engineering logic can stay valid while the approval outcome changes with the vehicle variant.

A short checklist that actually helps during review

1. Define the limiting brake issue: rotor peak temperature, caliper heat soak, fluid margin, pad wear, or crack risk.
2. Confirm the duct outlet is aligned with the intended cooling target, especially the rotor vane entry region if disc cooling is the main goal.
3. Review inlet pressure quality and total pressure losses through the full path, not just nominal inlet size.
4. Assess the wheel and wheelhouse as part of the thermal system, because brake extraction depends on them.
5. Check packaging through steering, suspension travel, and thermal exposure.
6. Compare cooling benefit against aerodynamic cost and debris exposure.
7. Make sure the data set used for sign-off matches the actual vehicle variant, wheel design, and brake hardware release level.

If you keep the review in that order, most weak concepts reveal themselves quickly. The strongest brake airflow optimization ducts are rarely the ones with the loudest visual statement. They are the ones that preserve pressure, feed the rotor intelligently, work with the wheel rather than against it, and keep delivering under the vehicle motions and thermal loads that matter in real use.
