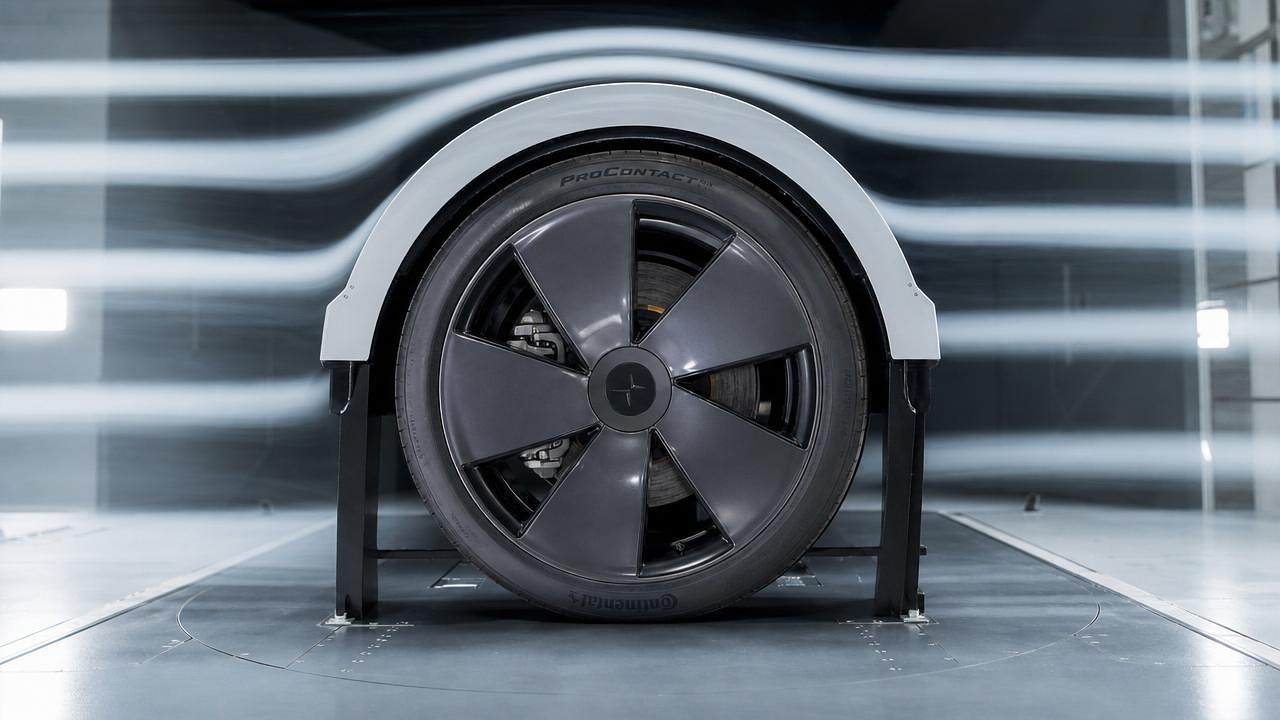

For technical evaluators, low-drag wheel design is no longer a styling compromise—it is a measurable route to extended EV range.
CFD simulations help teams quantify how wheel geometry, tire interaction, and brake airflow affect aerodynamic drag before tooling commitments become expensive.
The practical question is not whether CFD is useful, but which parameters deserve trust when comparing competing wheel concepts.
What Technical Evaluators Are Really Trying to Confirm
Most searches around CFD simulations for low-drag wheels reflect a decision need, not a theoretical curiosity about fluid dynamics.
Evaluators want to know whether a proposed wheel can reduce drag without creating brake cooling, durability, or manufacturability problems.
They also need to judge whether simulation claims are credible enough to support supplier selection or internal design approval.
The most valuable CFD study therefore connects aerodynamic numbers with vehicle-level consequences, including range, brake temperature, and stability.
A strong evaluation does not simply report a lower drag coefficient. It explains why the reduction occurs and under which conditions.
Start With the Metric: Drag Reduction Must Be Vehicle-Relevant
Wheel CFD should be assessed through vehicle-level drag contribution, not isolated visual impressions of smooth or closed surfaces.
The most useful output is usually the delta in drag coefficient or CdA compared with a baseline production wheel.
For EV programs, even small reductions around rotating wheels can affect highway range because aerodynamic losses rise rapidly with speed.
However, a wheel-only drag improvement may shrink when integrated with the full vehicle, tire, underbody, and wheelhouse geometry.
Technical evaluators should ask whether results come from a full-vehicle model, a quarter-car model, or an isolated wheel setup.
Full-vehicle CFD costs more, but it captures interactions that often decide whether a low-drag wheel design is genuinely beneficial.
Rotating Wheel Modeling Is a First-Order Parameter
One of the most critical parameters in CFD simulations is how wheel rotation is represented within the computational domain.
A stationary wheel can produce misleading flow structures, especially around spokes, tire shoulders, and the wheelhouse exit region.
Moving reference frames, sliding meshes, and rotating wall boundary conditions each offer different balances between accuracy and computational cost.
For concept screening, a rotating wall and moving ground may be acceptable if the study focuses on comparative ranking.
For final validation, higher-fidelity rotation modeling is preferable because spoke passage effects influence turbulence and brake cavity pressure.
Evaluators should check whether the tire, rim, spokes, and brake components are rotating consistently with the simulated vehicle speed.
Tire Geometry Can Change the Ranking of Wheel Designs
Low-drag wheel performance cannot be separated from the tire, because the tire shoulder governs separation and lateral wake behavior.
A concept optimized with a simplified torus tire may perform differently when paired with a realistic treaded production tire.
Tire width, sidewall curvature, shoulder radius, and rim protector details all influence the flow entering the wheel face.
For technical evaluation, the tire model should match the intended vehicle package as closely as the project phase allows.
In EV applications, low rolling resistance tires may have different shoulder profiles from sport tires, changing wheel-aero interactions.
A credible CFD report should specify tire dimensions, deformation assumptions, tread treatment, and whether contact patch flattening is included.
Spoke Geometry: Openness, Curvature, and Leading-Edge Behavior
Spoke design is where styling, structural load paths, brake cooling, and aerodynamic efficiency collide most visibly.
More open spokes usually improve brake ventilation but can increase pumping losses and expose high-drag internal wheel structures.
Closed or semi-closed spokes reduce airflow penetration, yet they may trap heat around the brake disc and caliper.
The curvature of each spoke matters because it controls whether flow is guided smoothly or shed into rotating vortices.
Sharp leading edges may look precise, but they can generate separation under yaw or during wheel rotation.
Evaluators should compare pressure contours and surface streamlines, not only final drag numbers, to identify robust spoke behavior.
Rim Depth and Outer Lip Shape Influence Wheelhouse Flow
Rim depth affects how air moves across the wheel face and whether flow is drawn into the wheel cavity.
A deeper rim can shield internal components, but it may also create recirculation zones if the outer lip is poorly shaped.
The outer rim flange is especially important because it meets disturbed air from the tire shoulder and vehicle side.
Small changes in lip radius, offset, or step geometry can alter separation and reduce drag without changing overall styling.
Technical evaluators should look for sensitivity studies, because rim-depth benefits are often dependent on tire width and fender coverage.
A design that works on one vehicle may underperform on another if the wheel arch and rocker panel geometry differ.
Ventilation Openings Must Be Evaluated as Flow Devices
Vent openings are often treated as styling features, but in CFD simulations they act as active flow-management elements.
Their size, angle, spacing, and position determine how air enters the wheel cavity and exits toward the underbody.
Large openings may reduce brake temperature but increase aerodynamic drag by disturbing the outer wheel-face flow.
Small openings may improve drag yet fail in repeated braking or mountain descent thermal duty cycles.
A useful CFD study should report both drag impact and brake cooling indicators for every ventilation concept.
Mass flow rate through the wheel, disc surface heat transfer coefficient, and caliper-region velocity are practical comparison metrics.
Brake Cooling Is Not a Secondary Constraint
For low-drag wheel design, brake cooling should be evaluated in parallel with aerodynamic efficiency from the earliest screening stage.
This is especially important for heavy EVs, where curb weight and regenerative braking strategies vary across driving conditions.
Although regen reduces friction brake usage, emergency braking, downhill operation, and high-speed driving still demand thermal robustness.
CFD simulations can identify whether a closed wheel face creates low-velocity zones around the disc or caliper.
Thermal CFD may be coupled with conjugate heat transfer analysis when material temperatures and heat soak are critical.
Evaluators should not accept drag improvement without evidence that brake airflow remains adequate for the intended vehicle duty cycle.
Yaw Angle Testing Reveals Whether the Design Is Robust
Many wheel designs look efficient at zero yaw but lose performance when crosswinds create lateral flow across the vehicle.
Since real-world driving rarely occurs at perfect zero yaw, simulations should include several yaw angles for credible evaluation.
Typical sweeps may include zero, three, five, seven, and ten degrees, depending on program requirements.
Low-drag features that rely on narrow attached-flow conditions may become unstable under yaw and generate inconsistent performance.
For technical evaluators, a robust design is not always the lowest-drag result at one condition.
It is the design that maintains favorable drag and cooling balance across the expected operating envelope.
Ground Clearance, Wheel Arch, and Underbody Interaction Matter
Wheel aerodynamics are strongly influenced by the surrounding vehicle architecture, particularly the wheel arch and underbody flow field.
A wheel concept cannot be fully judged without considering fender shape, air curtains, undertray design, and rocker treatment.
Some low-drag wheels cooperate well with front bumper air curtains, while others disrupt the intended side-flow management strategy.
Rear wheels face different conditions because upstream turbulence from the front wheel and underbody changes local inflow quality.
Evaluators should require position-specific results, especially when front and rear wheel environments differ significantly.
Using one generic wheel analysis for all vehicle corners may hide important integration risks.
Mesh Quality Determines Whether Small Differences Are Meaningful
Low-drag wheel comparisons often involve small drag deltas, so mesh quality directly affects confidence in the conclusion.
Important mesh regions include spoke edges, tire shoulders, rim lips, brake components, and narrow wheelhouse clearances.
Boundary layer resolution should match the turbulence model and wall treatment used in the simulation.
For technical evaluation, mesh independence should be demonstrated when drag differences are close to the decision threshold.
If two wheel concepts differ by only a few counts of drag, numerical uncertainty may exceed the claimed advantage.
A credible report should disclose cell count, refinement strategy, y-plus range, convergence criteria, and residual behavior.
Turbulence Model Selection Should Match the Decision Stage
No turbulence model is universally perfect for rotating wheel aerodynamics, so the choice should match the required decision confidence.
RANS approaches are common for early screening because they offer manageable cost and reasonable comparative guidance.
Hybrid methods such as DES or scale-resolving simulations may capture unsteady vortex behavior with better detail.
However, higher fidelity does not automatically mean better value if boundary conditions, geometry, or validation remain weak.
Technical evaluators should ask whether the selected model has been benchmarked against wind tunnel or road-test data.
The most defensible CFD workflow often combines fast comparative screening with targeted high-fidelity analysis for shortlisted designs.
Boundary Conditions Must Reflect Real Operating Conditions
Boundary conditions define the credibility of CFD simulations, especially when wheel drag and cooling are evaluated together.
Vehicle speed, ground motion, inlet turbulence, ambient temperature, and wheel rotational speed should align with the target test scenario.
For thermal evaluation, brake heat input must correspond to realistic braking events or regulatory duty cycles.
Overly simplified boundary conditions can exaggerate benefits, particularly for ventilation features designed around controlled airflow paths.
Evaluators should prefer studies that clearly state assumptions and explain why each condition is relevant.
Transparent boundary conditions make it easier to compare results across suppliers, design iterations, and vehicle platforms.
Pressure Distribution Explains Why Drag Changes
Final drag numbers are useful, but pressure distribution shows whether a design improvement is physically believable.
Low pressure behind spokes, separation near the rim lip, and high stagnation regions on the wheel face deserve attention.
Pressure maps can reveal whether drag reduction comes from smoother outer flow or reduced internal cavity pumping.
They can also expose trade-offs where a design lowers drag while starving the brake region of airflow.
Technical evaluators should request visual evidence, including pressure contours, velocity vectors, and streamlines around critical features.
These diagnostics reduce the risk of accepting a numerical result without understanding its engineering cause.
Structural and Manufacturing Constraints Still Define Feasibility
A wheel that performs well in CFD is not automatically viable for production, especially in forged or cast aluminum applications.
Spoke thickness, load paths, impact resistance, machining limits, and coating durability can restrict aerodynamic geometry choices.
Highly closed surfaces may improve aero performance but add weight if structural reinforcement becomes necessary.
For EVs, added wheel mass can offset some efficiency benefits through higher rotational inertia and unsprung weight.
Technical evaluators should connect CFD outcomes with strength analysis, fatigue testing, and manufacturability review.
The best low-drag wheel is rarely the most closed design; it is the best integrated engineering compromise.
How to Compare Supplier CFD Claims
When reviewing supplier submissions, evaluators should first confirm that each study uses comparable geometry, tires, and vehicle conditions.
Next, check whether drag, cooling, and thermal indicators are reported together rather than as separate marketing claims.
Ask whether simulations were validated through wind tunnel measurements, coastdown testing, brake dyno data, or previous correlation projects.
Look for uncertainty statements, mesh sensitivity, and repeatability evidence when claimed gains are small.
Also evaluate whether the supplier can explain the flow mechanism behind every major improvement.
A convincing CFD package should make the design logic visible, not simply present polished contour images.
Practical Evaluation Checklist
A strong low-drag wheel CFD review should include rotating wheel treatment, moving ground, realistic tire geometry, and vehicle integration.
It should include drag deltas, brake cooling mass flow, thermal indicators, yaw sweep behavior, and pressure-based explanation.
It should also disclose mesh strategy, turbulence model, convergence behavior, and sensitivity analysis for key design variables.
For supplier comparison, require identical baselines and consistent reporting formats whenever possible.
If a study cannot explain the trade-off between drag reduction and brake cooling, its practical value is limited.
If it cannot demonstrate correlation or credible numerical discipline, it should not drive major tooling decisions alone.
Conclusion: The Parameters That Matter Most
For technical evaluators, the most important CFD parameters are those that change real vehicle performance and decision confidence.
Rotating wheel modeling, tire realism, spoke geometry, rim lip shape, ventilation design, brake airflow, and yaw robustness deserve priority.
Mesh quality, turbulence modeling, boundary conditions, and validation determine whether small drag differences can be trusted.
The best CFD simulations do more than identify a visually sleek wheel. They quantify an engineering balance.
For EV platforms, that balance links range, cooling, weight, durability, and exterior aesthetics in one measurable development framework.
When used rigorously, CFD becomes a decision tool that reduces design risk before prototypes, tooling, and market commitments are made.
